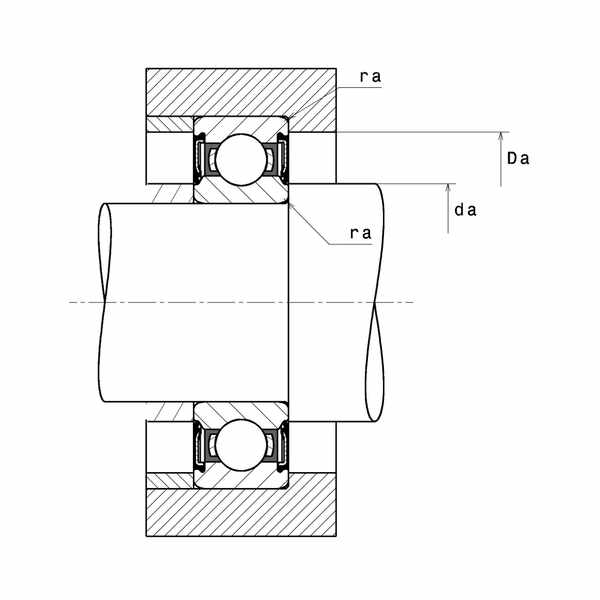

| ra max - Max shaft & housing fillet radius | 0,6 mm | ||
| da min - Min shoulder diameter IR | 22 mm | ||
| Tmin - Min operating temperature | -10 °C | ||
| f0 - Coefficient | 13.20 | ||
| C - Dynamic load | 7,35 kN | ||

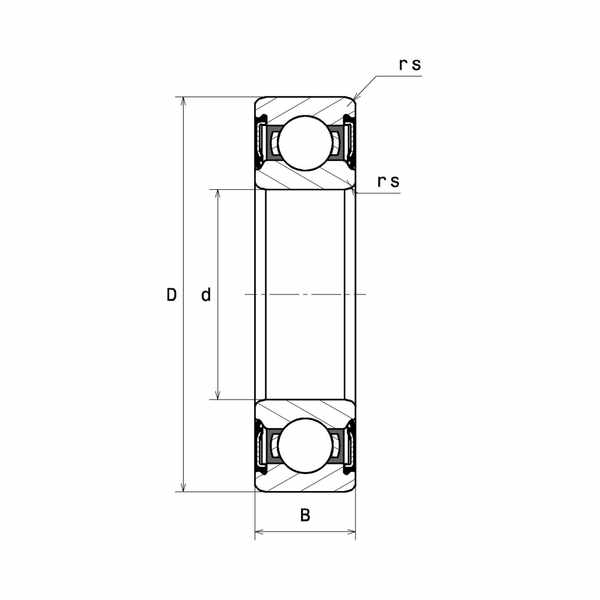

| rs - Min fillet radius | 0,6 mm |
| Da max - Max shoulder diameter OR | 35 mm | ||
| Tmax - Max operating temperature | 80 °C | ||
| Nlim - Mechanical Limit Speed | 5800 tr/min | ||
| C0 - Static load | 4,8 kN | ||
| Radial clearance class | CN | ||
| Brand | NTN |
