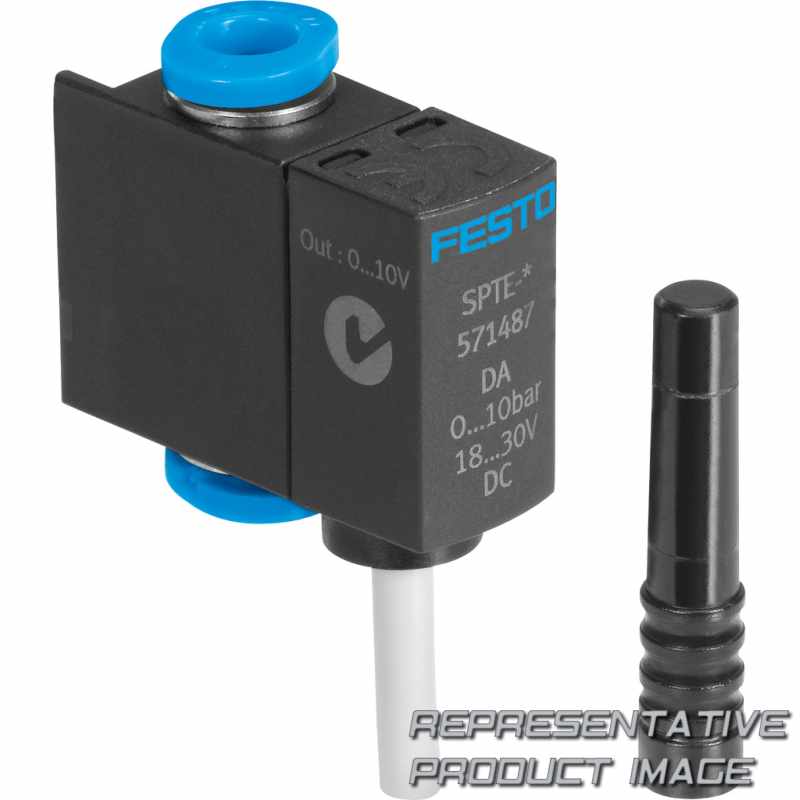

FESTO 571472 pressure transmitter

Name: 571472 FESTO
Brand: FESTO
SKU: 674341-en-gbp
Price: 59.72 GBP
Availability: SoldOut

SPTE-V1R-Q4-B-2.5K

£59.72

Limited stock only available on quotation

Specifications

LABS (PWIS) conformity		VDMA24364-B2-L
Degree of protection		IP40
Material housing		PA-reinforced
Pneumatic connection		QS-4
Type of mounting		With accessories
Electrical connection		3-wire Cable Open end
Operational voltage range DC		10 V ... 30 V
Min. load resistance voltage output		15 kOhm
Analogue output		1 - 5 V
Repetition accuracy in ± %FS		0,3 %FS
Ambient temperature		0 °C ... 50 °C
Note on operating and pilot medium		Lubricated operation possible
Overload pressure		72,5 psi
Start value for pressure measuring range		0 psi
Measured variable		Relative pressure
Certificate issuing authority		UL E322346
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00992257

Corrosion resistance class CRC		2 - Moderate corrosion stress
Material sealing ring		FPM
Product weight		35 g
Mounting position		optional
Cable length		2,5 m
Reverse polarity protection		For all electrical connections
Short circuit current rating		For all electrical connections
Rise time		1 ms
Temperature coefficient in ± %FS/K		0,05 %FS/K
Accuracy in ± % FS		3 %FS
Media temperature		0 °C ... 50 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
End value for pressure measuring range		-14,5 psi
Measurement method		Piezoresistive pressure sensor
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us - Recognized (OL)
