8025979 Festo

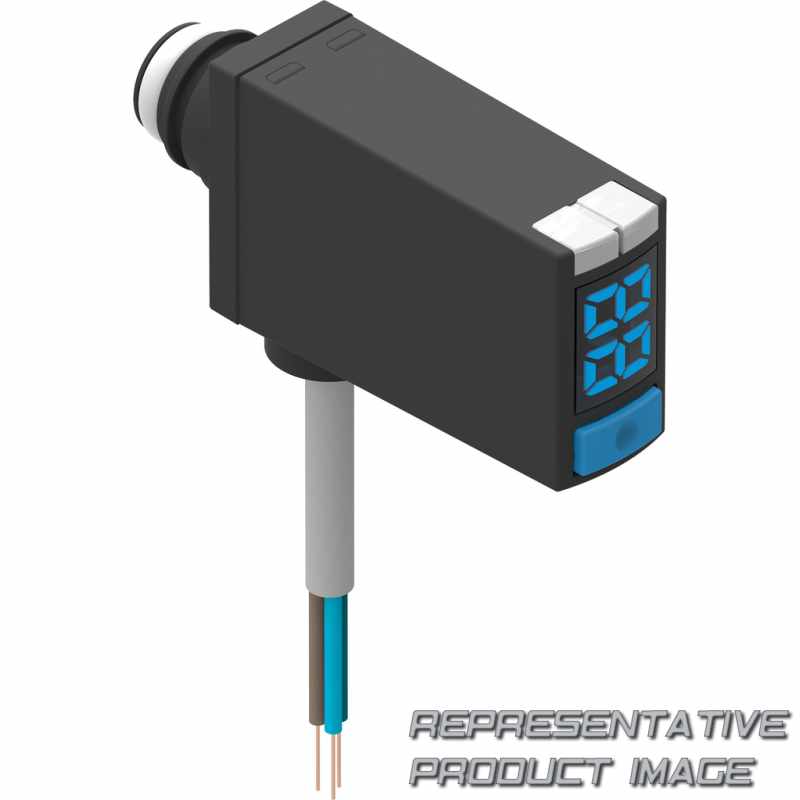

FESTO 8025979 pressure sensor

Name: 8025979 FESTO
Brand: FESTO
SKU: 691900-en-gbp
Price: 110.38 GBP
Availability: InStock

SPAE-B2R-PC10-PNLK-2.5K

£110.38

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SPAE)	Pressure sensor
Pressure measuring range (B2)	-1 ... 1 bar
Pressure inlet (R)	Relative pressure

Pneumatic connection (PC10)	Cartridge 10 mm
Electrical output 1 (PNLK)	PNP/NPN/IO-Link
Electrical connection (2.5K)	Cable 2.5 m, open end

Technical data

Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Corrosion resistance class CRC		2 - Moderate corrosion stress
Setting range threshold value		1 % ... 98 %
Setting options		IO-Link® Teach-in Via display and keys
Displayable units		%FS
Material sealing ring		FPM
Product weight		40 g
Mounting position		optional
Cable length		2,5 m
Reverse polarity protection		For all electrical connections
IO-Link, Data storage required		500 Byte
IO-Link, Process data content IN		14 bit PDV (pressure measurement value) 2 bit BDC (pressure monitoring)
IO-Link, Process data length OUT		0 bytes
IO-Link, SIO-Mode support		Yes
IO-Link, Function classes		Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, Protocol version		Device V 1.1
Short circuit current rating		yes
Display range start value		0 %FS
Switching element function		N/C contact N/O contact Switchable
Switching output		PNP/NPN, switchable
Repetition accuracy in ± %FS		0,3 %FS
Resolution ADC		10 bit
Media temperature		0 °C ... 50 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
End value for pressure measuring range		14,5 psi
Measurement method		Piezoresistive pressure sensor with display
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us - Recognized (OL)

LABS (PWIS) conformity		VDMA24364-B2-L
Degree of protection		IP40
Protection against tampering		PIN code
Switching status indication		Yellow LED
Display type		LED indicator 2-digit
Material housing		PA-reinforced
Pneumatic connection		Cartridge 10 mm
Type of mounting		Pin-type connection

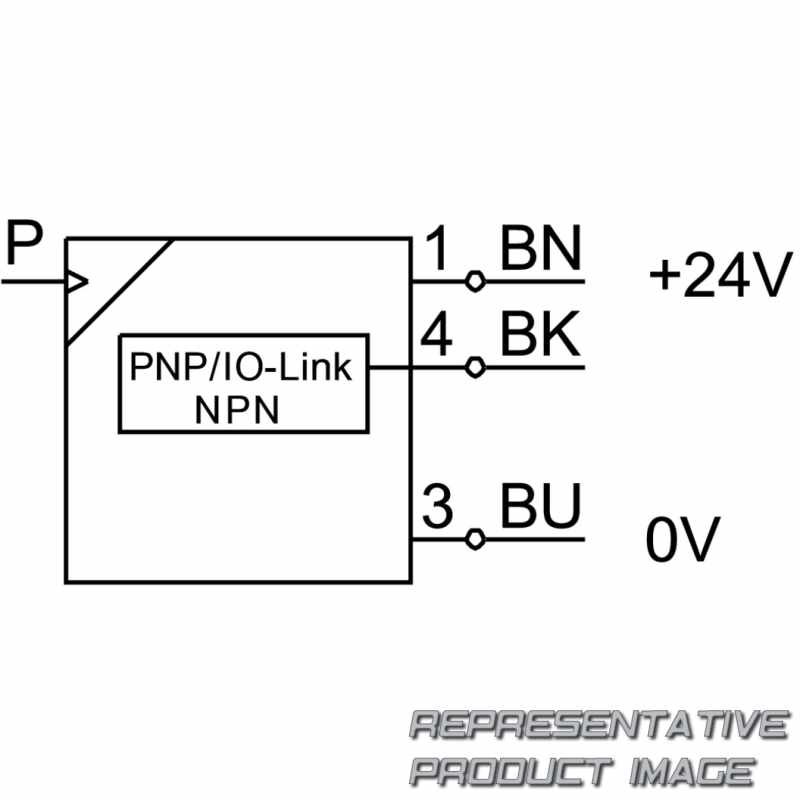

Electrical connection		3-wire Cable Open end
Operational voltage range DC		18 V ... 30 V
IO-Link, Min. cycle time		3 ms
IO-Link, Process data length IN		2 bytes
IO-Link, Port class		A
IO-Link, communication mode		COM2 (38.4 kBaud)
IO-Link, Profile		Smart sensor profile
Protocol		IO-Link®
Display range end value		99 %FS
Max. output current		100 mA
Switching function		Freely programmable
Temperature coefficient in ± %FS/K		0,05 %FS/K
Accuracy in ± % FS		1,5 %FS
Ambient temperature		0 °C ... 50 °C
Note on operating and pilot medium		Lubricated operation possible
Overload pressure		72,5 psi
Start value for pressure measuring range		-14,5 psi
Measured variable		Relative pressure
Certificate issuing authority		UL E322346
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00995430
