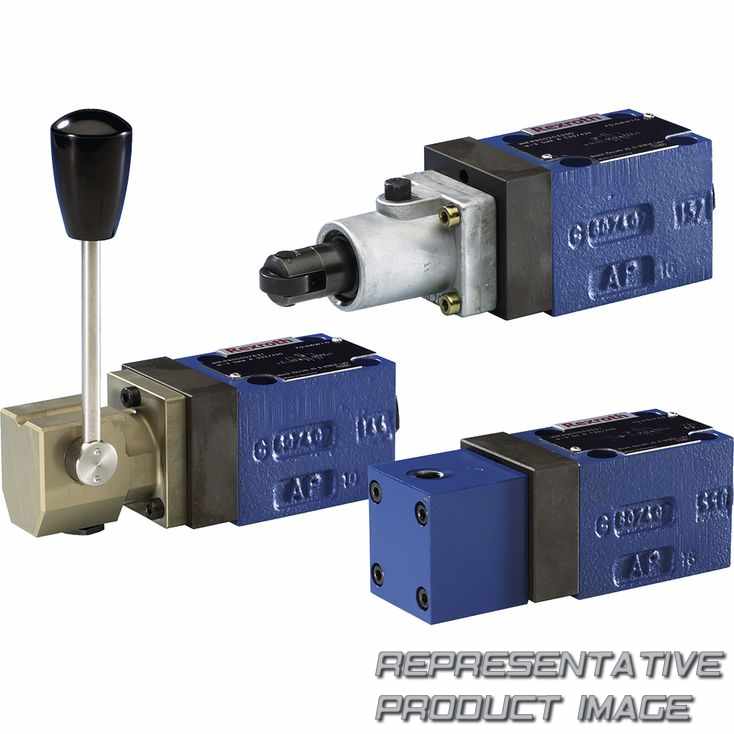

REXROTH SP
11 Products
Specifications
- Size 10, 6
- Component series 3X
- Maximum operating pressure 420 / 630 bar
- Maximum flow 40 l/min
Discover all the available configurations for the REXROTH SP product series Multiple. Find the right product by filtering with Ports, Symbols, Valve and throttle and Seal Material.
SP Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| SP | M- - - - -3X- | Multiple |
Typecode for Catalog Number SP,
M- - - - -3X-
| 001 | Mineral oil |
|---|---|
| M | M |
| 002 | Ports |
| 2 | 2 main ports |
| 3 | 3 main ports |
| 4 | 4 main ports |
| 003 | Series |
| SH | Hydraulically operated |
| SP | Pneumatcally operated |
| SMM | Manually operated (hand lever) |
| SMR | Mechanically operated (roller plunger) |
| 004 | Size |
| 6 | Sze 6 |
| 10 | Sze 10 |
| 005 | Symbols |
| U | U |
| P | P |
| C | C |
| D | D |
| Y | Y |
| N | N |
| 006 | Component series |
| 3X | Component series 30 to 39 (30 to 39: unchanged installation and connection dimensions) |
| 007 | Detent |
|---|---|
| Wihtout detent | |
| F | With detent (type SMM only) |
| 008 | Operating pressure |
| 420 | 420 bar [5076 psi] |
| 630 | 630 bar [5076 psi] |
| 009 | Spool position monitoring |
| QMAG24 | Monitored spool position “a” |
| QMBG24 | Monitored spool position “b” |
| without position switch | |
| 010 | Valve and throttle |
| Without check valve insert, without throttle insert | |
| P | With check valve insert |
| B12 | Throttle Ø1.2 mm [0.0472 inch] |
| B15 | Throttle Ø1.5 mm [0.0591 inch] |
| B18 | Throttle Ø1.8 mm [0.0709 inch] |
| B20 | Throttle Ø2.0 mm [0.0787 inch] |
| B22 | Throttle Ø 2.2 mm [0.087 inch] |
| 011 | Seal material |
| NBR seals | |
| V | FKM seals |
