FESTO 537691 transmitter

Name: 537691 FESTO
Brand: FESTO
SKU: 673896-en-gbp
Price: 54.25 GBP
Availability: InStock

SOEG-S-M18-K-L

£54.25

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SOE)	Sensor, optoelectronic
Sensor characteristic (G)	Standard sensor
Sensor function (S)	Through-beam sensor, transmitter
Design type (M18)	Round, M18, beam exit straight

Corrosion resistance class CRC		1 - Low corrosion stress
Ambient temperature with moving cable		-5 °C ... 55 °C
Material housing		Brass Chrome-plated
Tightening torque		20 Nm
Size		M18x1
Cable length		2,5 m
Reverse polarity protection		For all electrical connections
Residual ripple		20%
Short circuit current rating		Pulsed
Operating distance		20.000 mm
Measurement method		Through-beam sensor Transmitter
Measured variable		Position
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Degree of protection		IP65 IP67
Material union nut		Brass Chrome-plated
Product weight		115 g
Type of mounting		Via lock nut
Material cable sheath		TPE-U(PUR)

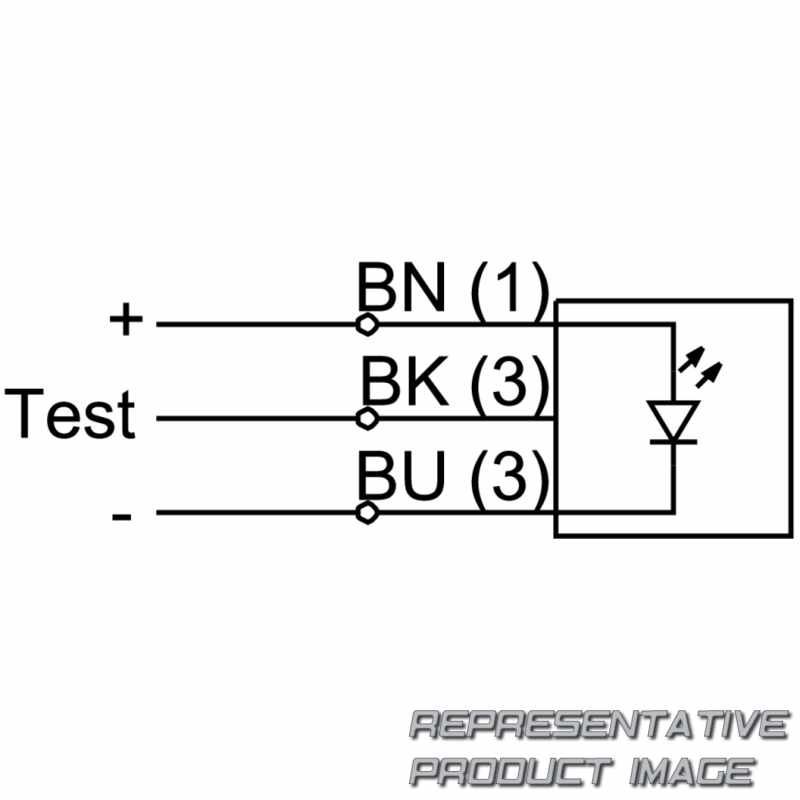

Electrical connection		3-wire Cable
No-load supply current		15 mA
Operational voltage range DC		10 V ... 36 V
Ambient temperature		-25 °C ... 55 °C
Type of light		Red
Measuring principle		Optoelectronic
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991642
Design		Round
