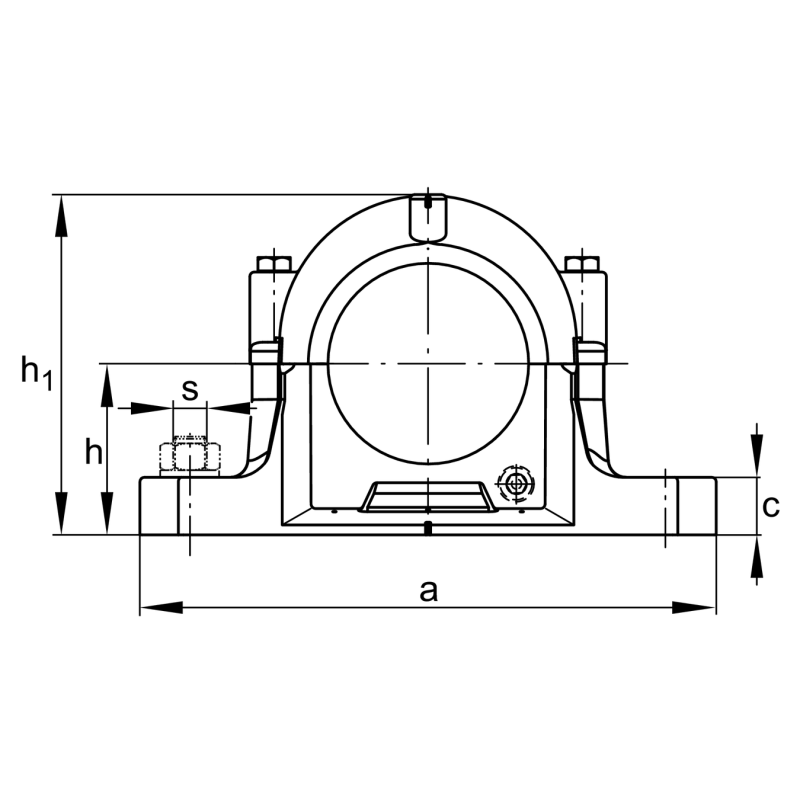

| Outside diameter bearing | D | 52 | mm |
| Height | T | 75 | mm |
| length base | a | 165 | mm |
| width housing body | g | 70 | mm |

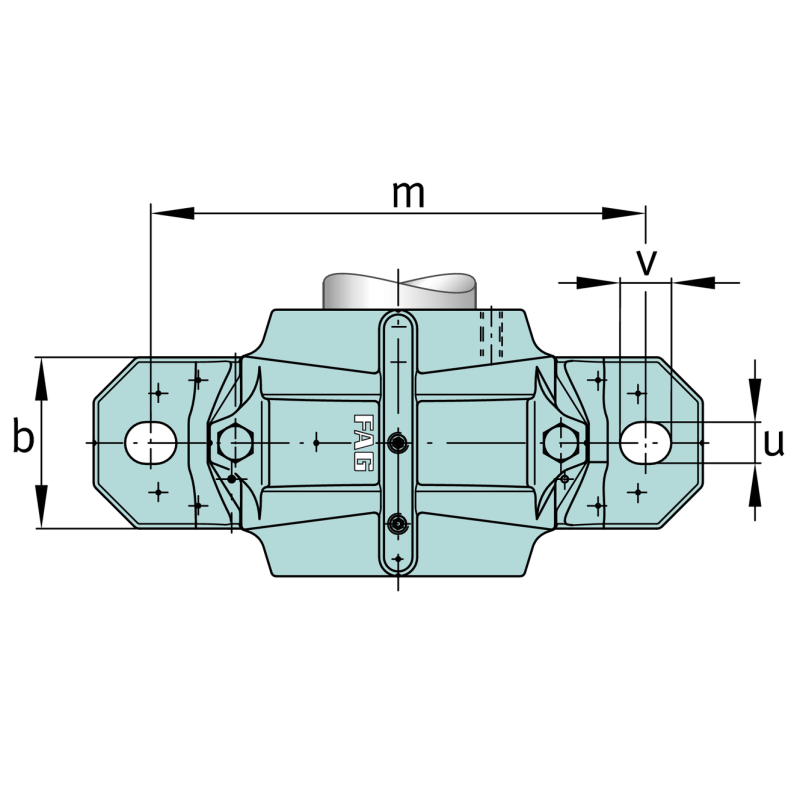

| width base | b | 46 | mm |
| Base to shaft centerline height | h | 40 | mm |
| Screw size | 12.70 | ||
| width slot | u | 15 | mm |
| Wall thickness | s3 | 10.50 | mm |
| Height base | c | 19 | mm |
| distance fixing bore | m | 130 | mm |
| Size of fixing screws | s | M12 | |
| length slot | v | 20 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | SNL505 (SKF) |
| SNR | SNC505 (SNR) |
