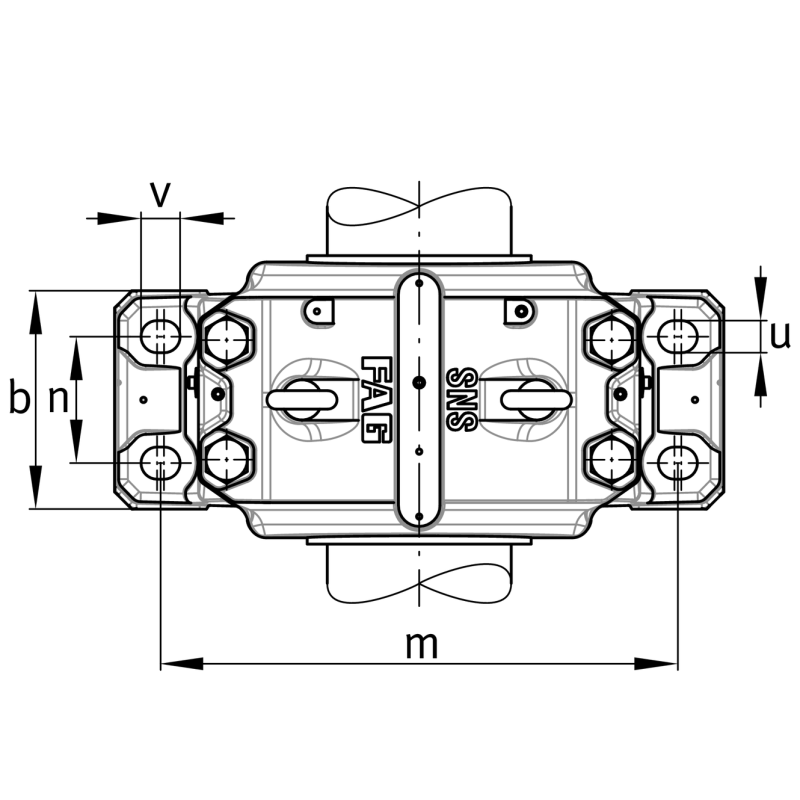

| Base hole length | v | 34 | mm |
| Screw size base hole fixing | s | M24 | |

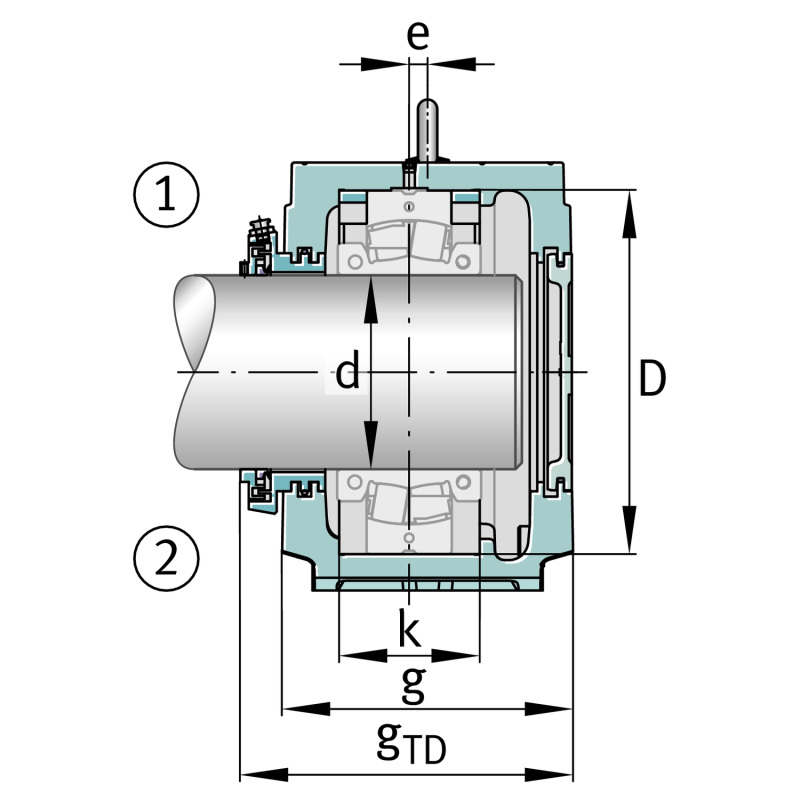

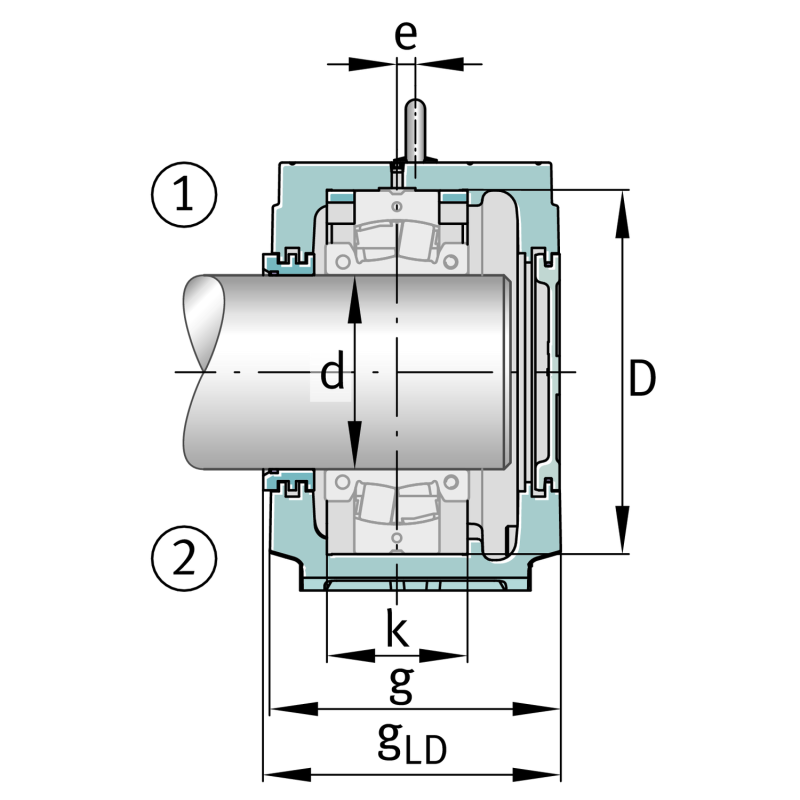

| Bearing seat width | k | 108 | mm |
| Center offset | e | 14 | mm |
| Base hole distance 2 | n2 | 100 | mm |

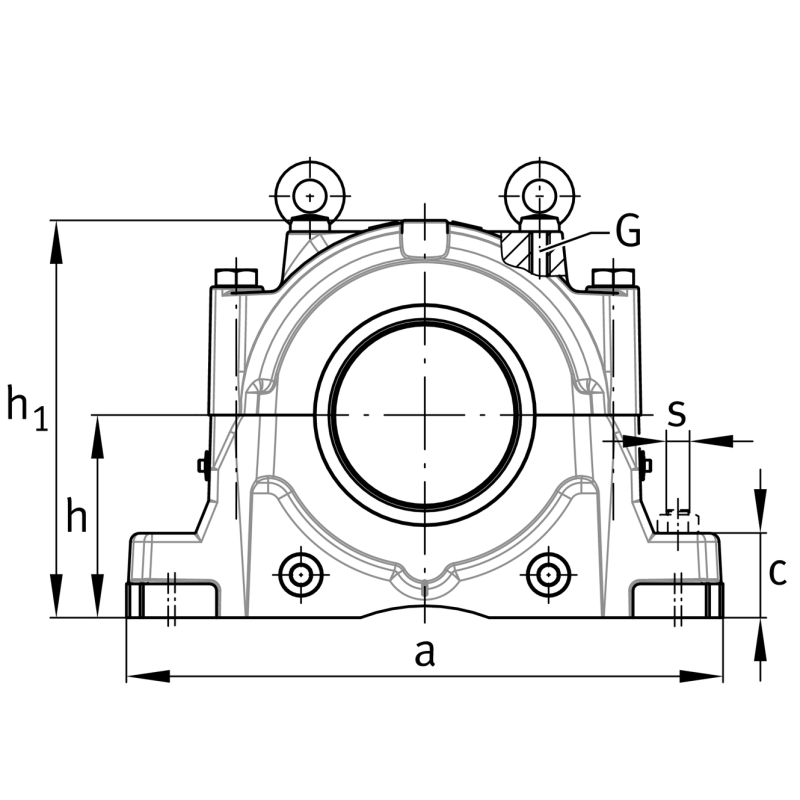

| Base height | c | 70 | mm |
| Base hole width | u | 28 | mm |
| Base hole distance 1 | m | 430 | mm |
| Center height | h | 170 | mm |
| Bearing seat | D | 280 | mm |
| Base width | b | 180 | mm |
| length base | a | 510 | mm |
| Housing height | h1 | 333 | mm |
| Housing width | g | 230 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | SNL3036 |
| SKF | SNLD3036 |
| TIMKEN | SNTD3036 |
