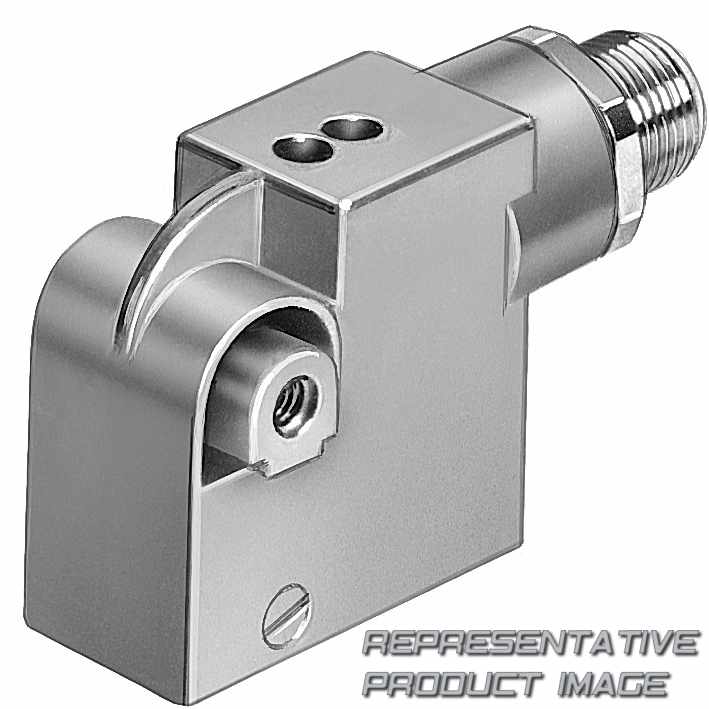

| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Degree of protection | IP67 | ||
| Ready status indication | Green LED | ||
| Product weight | 70 g | ||
| Type of mounting | With accessories | ||
| Connection outlet orientation | In-line | ||
| Electrical connection 1, type of mounting | Screw-type lock | ||
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 | ||
| Reverse polarity protection | For all electrical connections | ||
| Operational voltage range DC | 10 V ... 30 V | ||
| Short circuit current rating | Pulsed | ||
| Inductive protective circuit | Adapted to MZ, MY, ME coils | ||
| Max. switching capacity DC | 6 W | ||
| Max. switching frequency | 20 Hz | ||
| Switch-on time | 35 ms | ||
| Switching element function | N/O contact | ||
| Repetition accuracy | 0,2 mm | ||
| Measuring principle | Magneto-inductive | ||
| Note on materials | RoHS-compliant | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark | ||
| Based on standard | EN 60947-5-2 |
| Immunity to magnetic fields | 50 - 60 Hz Alternating magnetic field | ||
| Switching status indication | Yellow LED | ||
| Material housing | PA PUR Die-cast zinc | ||
| Mounting position | optional | ||
| Material electrical contact | Gold-plated brass | ||
| Electrical connection 1, connection pattern | 00991168 | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, connection type | Plugs | ||
| Residual ripple | 10 % | ||
| Overload protection | Available | ||
| Off-state current | 0,01 mA | ||
| Voltage drop | 3 V | ||
| Max. output current | 200 mA | ||
| Switch-off time | 20 ms | ||
| Hysteresis | 0,1 mm ... 1,5 mm | ||
| Switching output | PNP | ||
| Ambient temperature | -25 °C ... 70 °C | ||
| Measured variable | Position | ||
| Special characteristics | Welding field resistant Resistant to welding spatter | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00991153 | ||
| Design | Block design |
