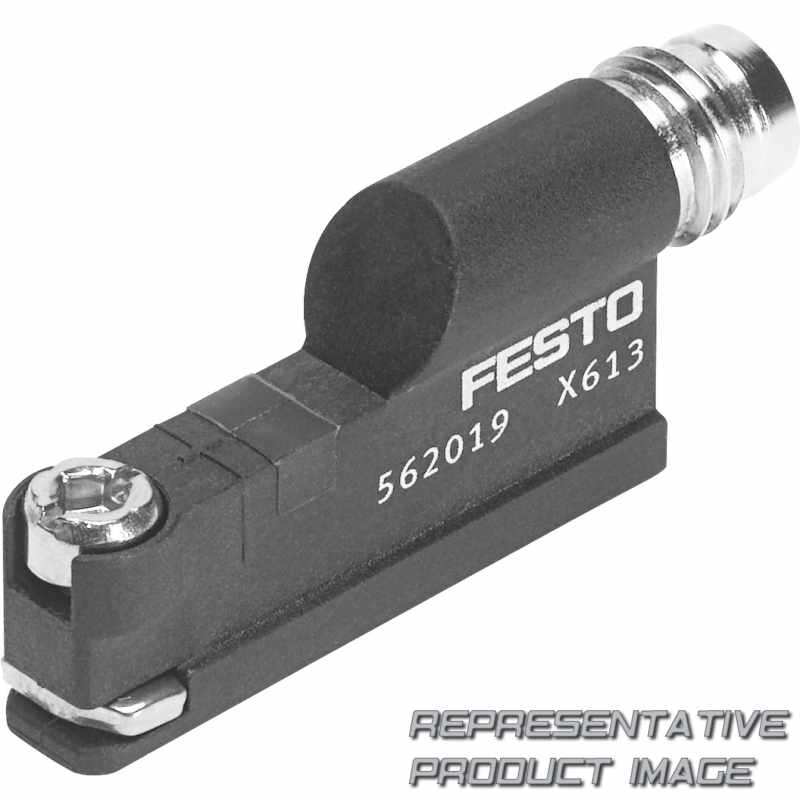

| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Switching status indication | Yellow LED | ||
| Housing colour | Black | ||
| Mounting position | optional | ||
| Tightening torque | 0,12 Nm ... 0,4 Nm | ||
| Material electrical contact | Gold-plated brass | ||
| Electrical connection 1, connection pattern | 00991155 | ||
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 | ||
| Reverse polarity protection | For all electrical connections | ||
| Operational voltage range DC | 10 V ... 30 V | ||
| Overload protection | Available | ||
| Off-state current | < 0,002 mA | ||
| Inductive protective circuit | Adapted to MZ, MY, ME coils | ||
| Max. switching capacity DC | 3 W | ||
| Max. switching frequency | 140 Hz | ||
| Switch-on time | ≤ 1 ms | ||
| Switching output | PNP | ||
| Ambient temperature | -20 °C ... 70 °C | ||
| Measured variable | Position | ||
| Note on materials | RoHS-compliant | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Based on standard | EN 60947-5-2 |
| Degree of protection | IP65 IP68 | ||
| Material housing | PA | ||
| Product weight | 4,2 g | ||
| Max. tightening torque | 0,4 Nm | ||
| Type of mounting | Screw-clamped Insertable in the slot lengthwise | ||
| Connection outlet orientation | In-line | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, connection type | Plugs | ||
| Residual ripple | 10 % | ||
| Rated operational voltage DC | 24 V | ||
| Short circuit current rating | yes | ||
| Min. load current | 0,1 mA | ||
| Voltage drop | ≤ 2 V | ||
| Max. output current | 100 mA | ||
| Switch-off time | 2 ms ... 6 ms | ||
| Switching element function | N/O contact | ||
| Repetition accuracy | 0,2 mm | ||
| Measuring principle | Magneto-resistive | ||
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" | ||
| Certificate issuing authority | UL E232949 | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00991153 | ||
| Design | For T-slot |
