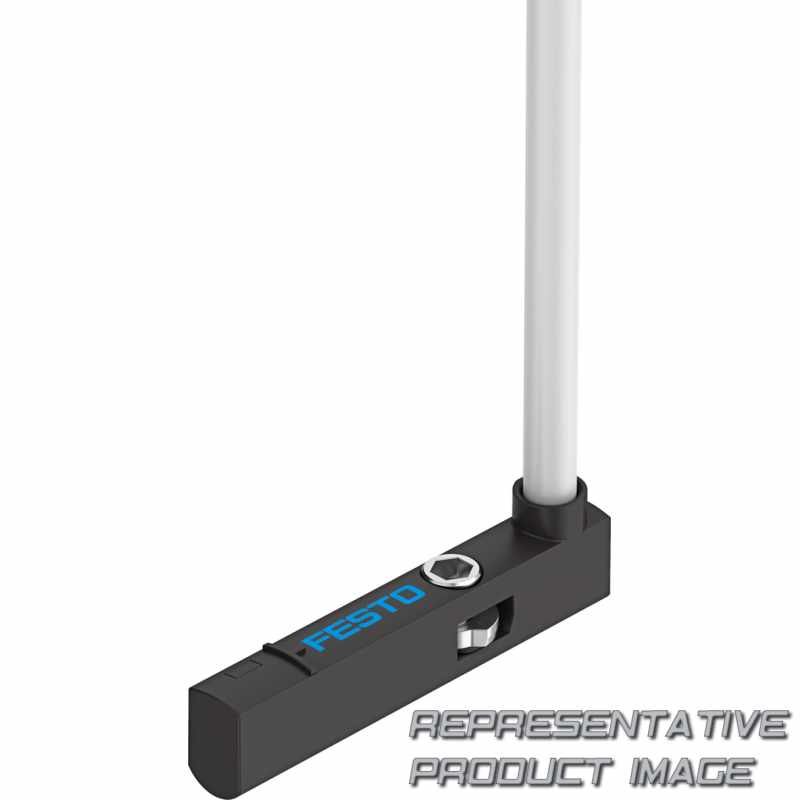

| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Ambient temperature with moving cable | -20 °C ... 70 °C | ||
| Material housing | PA-reinforced High-alloy stainless steel | ||
| Mounting position | optional | ||
| Type of mounting | Screw-clamped Insertable in the slot from above | ||
| Cable characteristic | Suitable for energy chains/robot applications | ||
| Test conditions cable | Bending strength: to Festo standard Test conditions on request Energy chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300,000 cycles, ± 270°/0.1 m | ||
| Electrical connection 1, connection pattern | 00991155 | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, connection type | Cable with plug | ||
| Operational voltage range DC | 5 V ... 30 V | ||
| Overload protection | Available | ||
| Voltage drop | ≤ 1,7 V | ||
| Max. switching capacity DC | 2,8 W | ||
| Max. output current | 100 mA | ||
| Switch-off time | ≤ 1,4 ms | ||
| Switching element function | N/O contact | ||
| Repetition accuracy | 0,2 mm | ||
| Measuring principle | Magneto-resistive | ||
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" | ||
| Special characteristics | Oil resistant | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark | ||
| Conforms to standard | EN 60947-5-2 |
| Degree of protection | IP65 IP68 | ||
| Switching status indication | Yellow LED | ||
| Product weight | 6,7 g | ||
| Max. tightening torque | 0,4 Nm | ||
| Material cable sheath | TPE-U(PUR) | ||
| Cable length | 0,3 m | ||
| Connection outlet orientation | Lateral | ||
| Electrical connection 1, type of mounting | Screw-type lock | ||
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 | ||
| Reverse polarity protection | For all electrical connections | ||
| Rated operational voltage DC | 24 V | ||
| Short circuit current rating | yes | ||
| Max. switching capacity DC using mounting kits | 1,5 W | ||
| Max. output current using mounting kits | 50 mA | ||
| Max. switching frequency | 150 Hz | ||
| Switch-on time | ≤ 1,3 ms | ||
| Switching output | PNP | ||
| Ambient temperature | -40 °C ... 70 °C | ||
| Measured variable | Position | ||
| Note on materials | RoHS-compliant Free of halogen | ||
| KC mark | KC-EMV | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00991153 | ||
| Design | For C-slot |
