| Pollution degree | 3 | ||
| Immunity to surge | 4 kV | ||
| Switching status indication | Yellow LED | ||
| Product weight | 70 g | ||
| Tightening torque | 0,8 Nm | ||
| Material cable sheath | PVC | ||
| Connection outlet orientation | In-line | ||

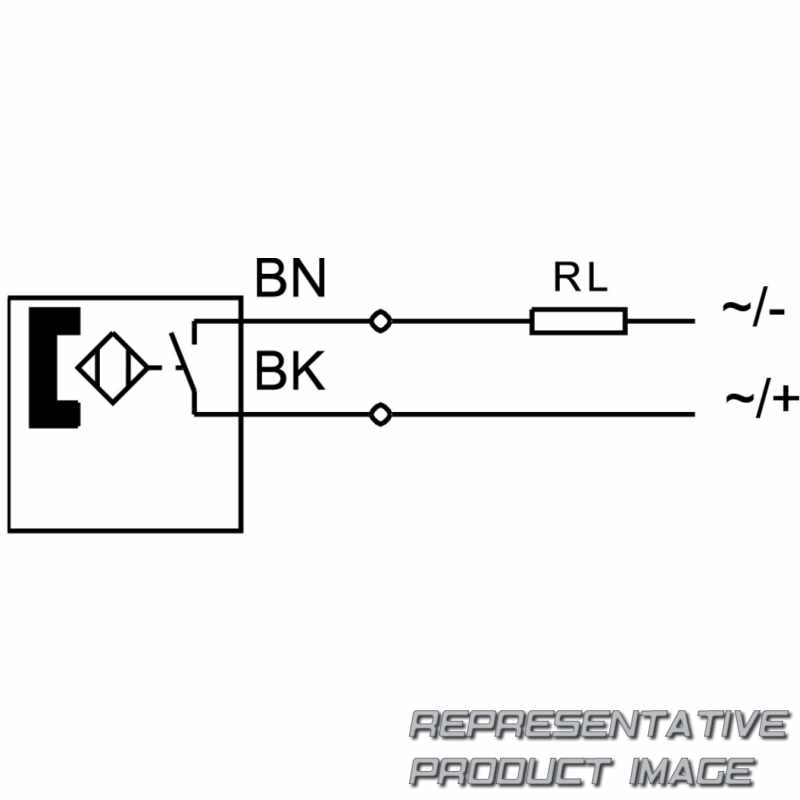

| Electrical connection 1, connector system | Open end | ||
| Reverse polarity protection | no | ||
| Operational voltage range AC | 12 V ... 250 V | ||
| Short circuit current rating | no | ||
| Max. switching capacity DC | 10 W | ||
| Max. output current DC | 120 mA | ||
| Max. switching frequency | 500 Hz | ||
| Switch-on time | ≤ 2 ms | ||
| Switching output | Contacting, bipolar Without LED function | ||
| Ambient temperature | -20 °C ... 60 °C | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK regulations for electrical equipment To UK RoHS instructions | ||
| Approval | RCM trademark | ||
| Conforms to standard | DIN EN 60947-5-2 |
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Degree of protection | IP67 | ||
| Material housing | PET TPE-O | ||
| Mounting position | optional | ||
| Type of mounting | With accessories | ||
| Cable length | 2,5 m | ||
| Electrical connection 1, number of connections/cores | 2 | ||
| Electrical connection 1, connection type | Cable | ||
| Operational voltage range DC | 12 V ... 250 V | ||
| Overload protection | Not available | ||
| Voltage drop | ≤ 4,5 V | ||
| Max. switching capacity AC | 10 VA | ||
| Max. output current AC | 250 mA | ||
| Switch-off time | 0,05 ms | ||
| Switching element function | N/O contact | ||
| Repetition accuracy | 0,2 mm | ||
| Measuring principle | Magnetic reed | ||
| CE mark (see declaration of conformity) | To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive | ||
| Symbol | 00992153 | ||
| Design | Round |
