| Pollution degree | 3 | ||
| Immunity to surge | 0,8 kV | ||
| Degree of protection | IP65 IP67 | ||
| Material housing | Epoxy resin PC PET High-alloy stainless steel | ||
| Product weight | 5 g | ||
| Tightening torque | 0,2 Nm | ||
| Connection outlet orientation | In-line | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, connection type | Plugs | ||
| Operational voltage range DC | 10 V ... 30 V | ||
| Overload protection | Not available | ||
| Voltage drop | 0 V | ||
| Max. switching capacity AC | 10 VA | ||
| Max. switching frequency | 500 Hz | ||
| Switch-on time | ≤ 0,6 ms | ||
| Switching output | Contacting, bipolar | ||
| Ambient temperature | -40 °C ... 60 °C | ||
| Measured variable | Position | ||
| Note on materials | RoHS-compliant | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00991619 | ||
| Design | For T-slot |
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Insulation voltage | 50 V | ||
| Switching status indication | Yellow LED | ||
| Housing colour | Black | ||
| Mounting position | optional | ||
| Type of mounting | Clamped in T-slot Insertable in the slot lengthwise | ||

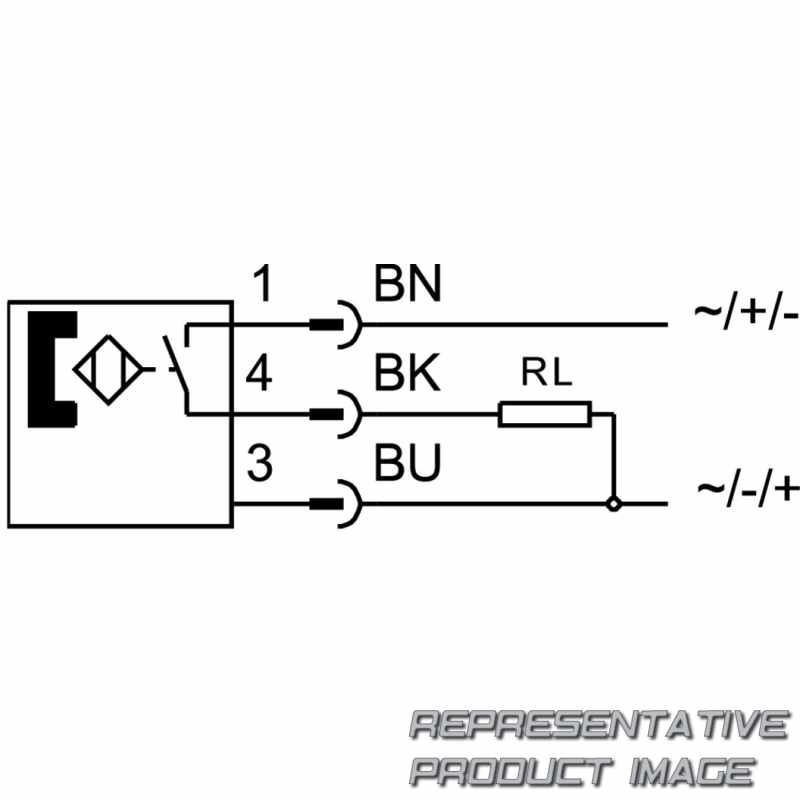

| Electrical connection 1, connection pattern | 00991155 | ||
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 | ||
| Reverse polarity protection | no | ||
| Operational voltage range AC | 10 V ... 30 V | ||
| Short circuit current rating | no | ||
| Max. switching capacity DC | 10 W | ||
| Max. output current | 500 mA | ||
| Switch-off time | 0,05 ms | ||
| Switching element function | N/O contact | ||
| Repetition accuracy | 0,2 mm | ||
| Measuring principle | Magnetic reed | ||
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark | ||
| Conforms to standard | EN 60947-5-2 |
