| product series | heavy | ||
| tube wall thickness | 2 mm | ||
| connection 1 tube outside diameter | 30 mm | ||
| connection 2 tube outside diameter | 16 mm | ||
| connection 1 size | 24° o-ring weld nipple | ||
| tube outside diameter | 6-42 mm | ||
| maximum operating pressure | 24.9-52.8 mpa, 249-528 bar, 3611-7658 psi | ||
| Application | agriculture equipment, automotive process, chemical transfer, construction equipment, fuel transfer, hydraulic, manufacturing equipment, marine, material handling, mobile equipment, oilfield, packaging, transportation | ||
| specifications met | din iso 8434 |

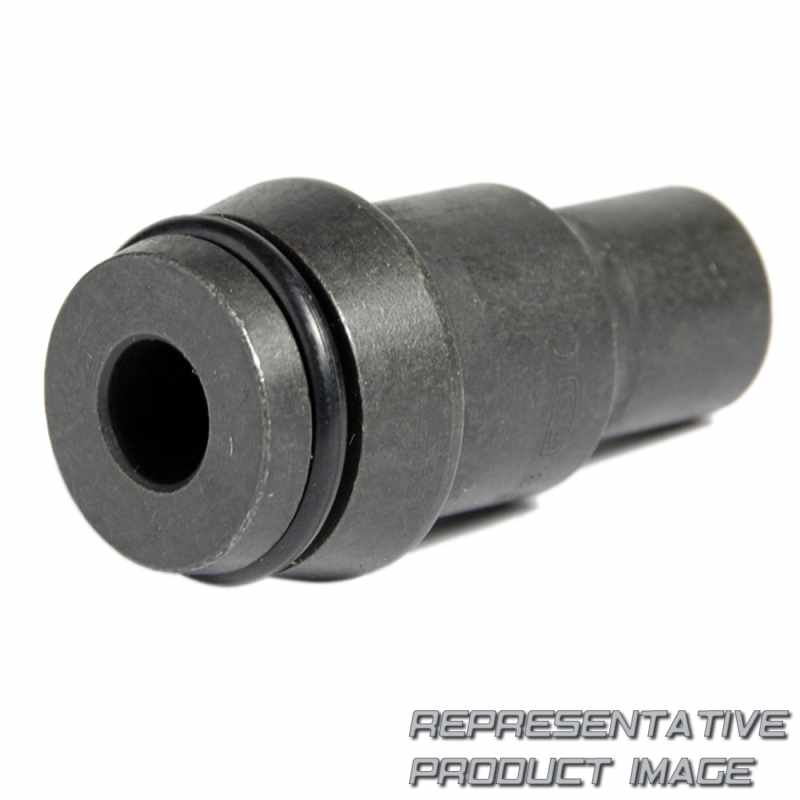

| shape | reducing weld nipple | ||
| connection 1 type | 24° o-ring weld nipple | ||
| connection 2 type | butt weld | ||
| materials of construction | steel | ||
| connection 2 size | butt weld | ||
| maximum operating temperature | +250 steel, +400 stainless steel °c, +482 steel, +752 stainless steel °f | ||
| minimum operating temperature | -40 (steel); -60 (stainless steel) °c, -40 steel, -76 stainless steel °f | ||
| connection type | bite type, soft seal bite type |
