FESTO 150490 proximity sensor

Name: 150490 FESTO
Brand: FESTO
SKU: 686471-en-gbp
Price: 92.77 GBP
Availability: InStock

SIES-V3B-NS-S-L

£92.77 1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIES)	Proximity sensor, inductive, special design
Design (V3)	Cube 15x 20 mm
Mounting type (B)	Flush
Switching input/output (N)	NPN

Switching element function (S)	N/O contact
Electrical connection (S)	Plug M8x1, 4-pin
Display (L)	Switching status

Selection of sensor design		Standard
Additional information for sensor selection		Special design
Switching status indication		Yellow LED
Product weight		120 g
Type of mounting		With through-hole
Electrical connection		3-pin M8x1 Plugs
No-load supply current		≤ 30 mA
Operational voltage range DC		10 V ... 30 V
Voltage drop		3,2 V
Max. switching frequency DC		1.200 Hz
Switching element function		N/O contact
Repetition accuracy		0,1 mm
Reduction factors		Aluminium = 0.45 Stainless steel St 18/8 = 0.7 Copper = 0.3 Brass = 0.5 Steel St 37 = 1.0
Rated operating distance		2 mm
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Electrical output		NPN
Degree of protection		IP67
Material housing		Die-cast zinc
Mounting type		Flush
Size		15x20x30 mm
Reverse polarity protection		For all electrical connections
Residual ripple		10 %
Short circuit current rating		Pulsed
Max. output current as a function of temperature		200 mA at <= 50°C 150 mA at <= 85°C
Max. switching frequency		1.200 Hz
Switching output		NPN
Ambient temperature		-25 °C ... 85 °C
Assured operating distance		1,6 mm
CE mark (see declaration of conformity)		To EU EMC Directive

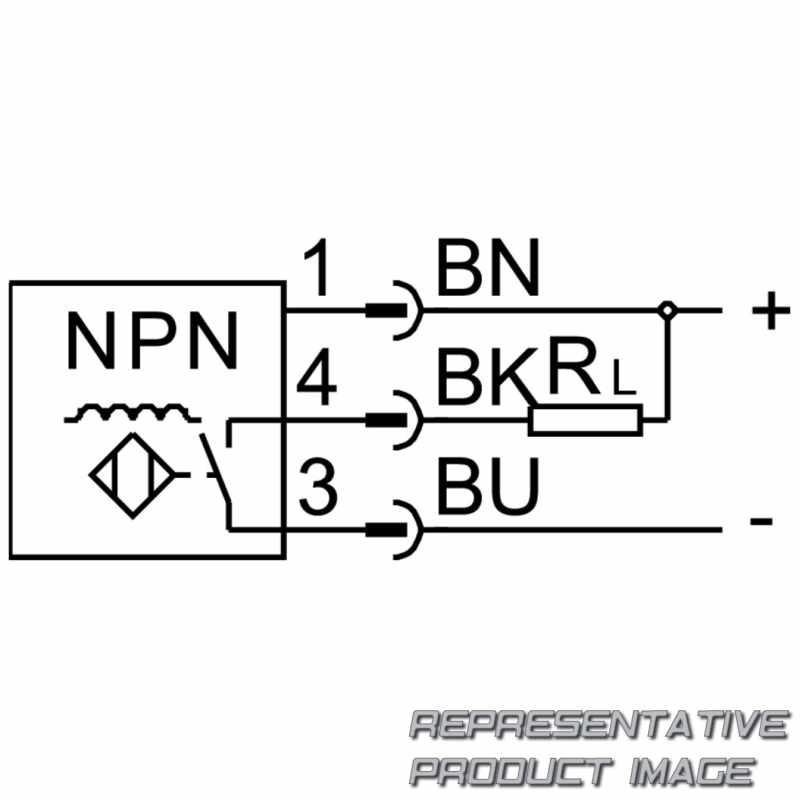

Symbol		00991703
