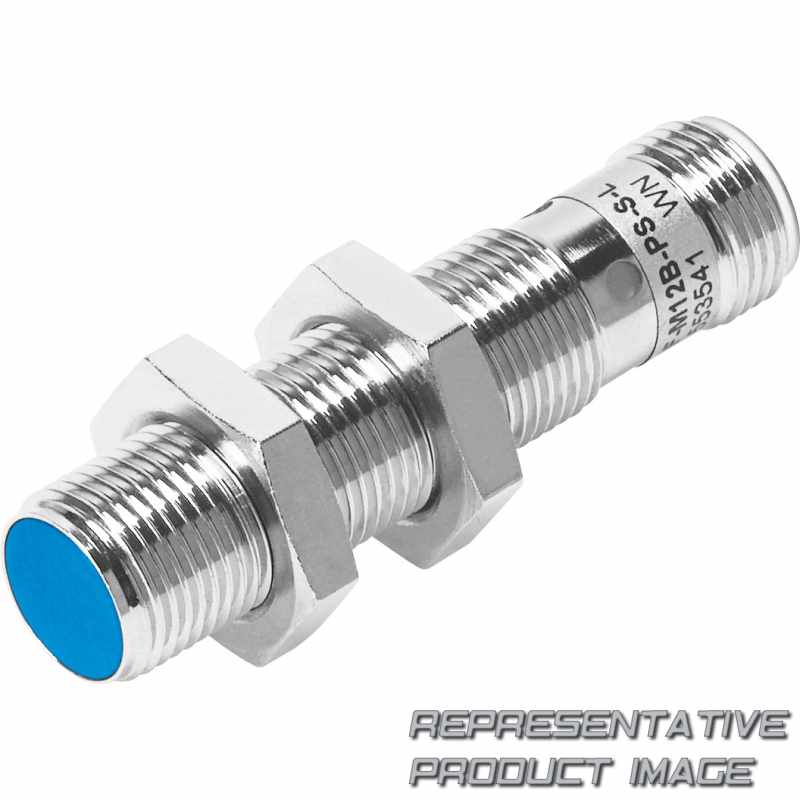

FESTO 553543 proximity sensor

Name: 553543 FESTO
Brand: FESTO
SKU: 679717-en-gbp
Price: 77.09 GBP
Availability: InStock

SIEF-M12B-NS-S-L

£77.09

available with 7 to 15 days delivery to United States

Specifications

Series (SIEF)	Proximity sensor, inductive, with reduction factor 1 for all met- als, welding fi eld immune
Design (M12)	Round, M12x1
Mounting type (B)	Flush
Switching input/output (N)	NPN

Switching element function (S)	N/O contact
Electrical connection (S)	Plug M8x1, 4-pin
Display (L)	Switching status
Housing material	Standard

Selection of sensor design		Standard
Pollution degree		3
Immunity to surge		0,8 kV
Degree of protection		IP68
Material housing		Brass Chrome-plated
Mounting type		Flush
Material connector housing		Brass Chrome-plated
Reverse polarity protection		For all electrical connections
Short circuit current rating		Pulsed
Max. switching frequency DC		3.000 Hz
Switching output		NPN
Ambient temperature		-30 °C ... 85 °C
Note on materials		RoHS-compliant
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Additional information for sensor selection		Reduction factor 1, resistant to magnetic fields
Corrosion resistance class CRC		2 - Moderate corrosion stress
Immunity to magnetic fields		Magnetic direct and alternating field
Switching status indication		Yellow LED
Product weight		24 g
Size		M12
Electrical connection		3-pin M12x1 Plugs
Operational voltage range DC		10 V ... 30 V
Max. output current		200 mA
Switching element function		N/O contact
Repetition accuracy		0,16 mm
Rated operating distance		3 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991703
Design		Round
