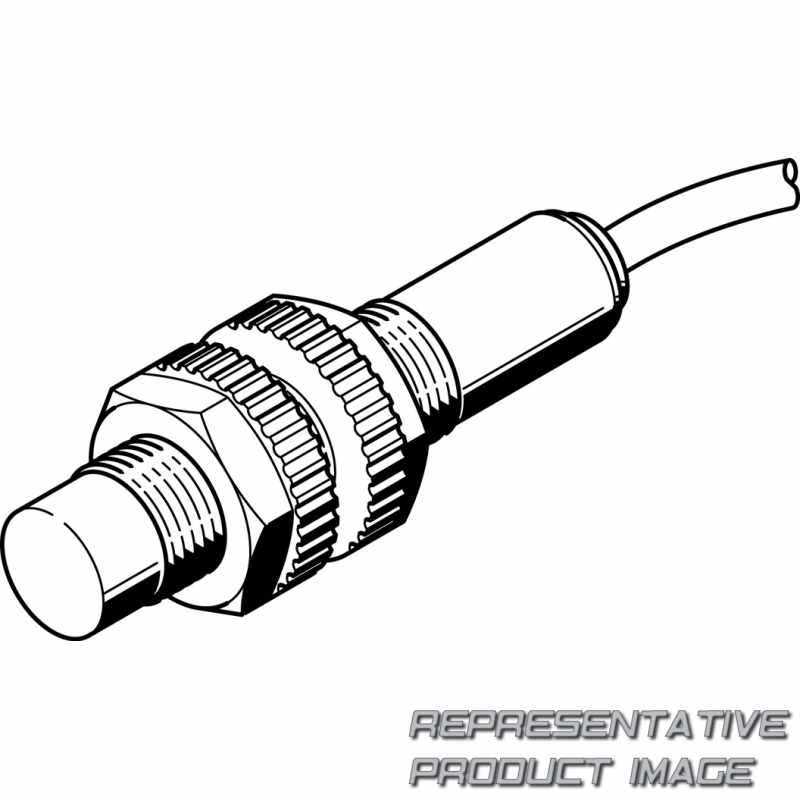

FESTO 538337 proximity sensor

Name: 538337 FESTO
Brand: FESTO
SKU: 686348-en-gbp
Price: 98.22 GBP
Availability: InStock

SIED-M18NB-ZS-K-L-PA

£98.22

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIED)	Proximity sensor, inductive, for DC and AC voltage
Design (M18)	Round, M18x1
Mounting type (NB)	Not ﬂ ush
Switching input/output (Z)	Contactless 2-wire

Switching element function (S)	N/O contact
Electrical connection (K)	Open end
Display (L)	Switching status
Housing material (PA)	Polyamide housing

Selection of sensor design		Polyamide housing
Additional information for sensor selection		For DC and AC voltage
Degree of protection		IP65 IP67
Switching status indication		Yellow LED
Product weight		123 g
Tightening torque		2 Nm
Size		M18
Material cable sheath		PVC
Electrical connection		2-wire Cable
No-load supply current		≤ 1,5 mA
Operational voltage range DC		10 V ... 300 V
Short circuit current rating		no
Voltage drop		≤ 6 V
Max. switching frequency AC		20 Hz
Hysteresis		0,24 mm ... 1,2 mm
Switching output		Non-contacting, 2-wire
Ambient temperature		-25 °C ... 70 °C
Assured operating distance		6,48 mm
Measuring principle		Inductive
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Electrical output		Non-contacting, 2-wire
Corrosion resistance class CRC		4 - Very high corrosion stress
Ambient temperature with moving cable		0 °C ... 70 °C
Material housing		PA-reinforced
Mounting type		Not flush
Type of mounting		Via lock nut
Material insulating sheath		PVC
Cable length		2,5 m
Reverse polarity protection		For all electrical connections
Mains frequency		50 Hz ... 60 Hz
Operational voltage range AC		20 V ... 250 V
Min. load current		3 mA
Max. output current		300 mA
Max. switching frequency DC		60 Hz
Switching element function		N/O contact
Repetition accuracy		0,16 mm
Reduction factors		Aluminium = 0.35 - 0.5 Stainless steel St 18/8 = 0.6 - 1.0 Copper = 0.25 - 0.45 Brass = 0.35 - 0.5 Steel St 37 = 1.0
Rated operating distance		8 mm
CE mark (see declaration of conformity)		To EU EMC Directive To EU Low Voltage Directive
Symbol		00991707
Design		Round
