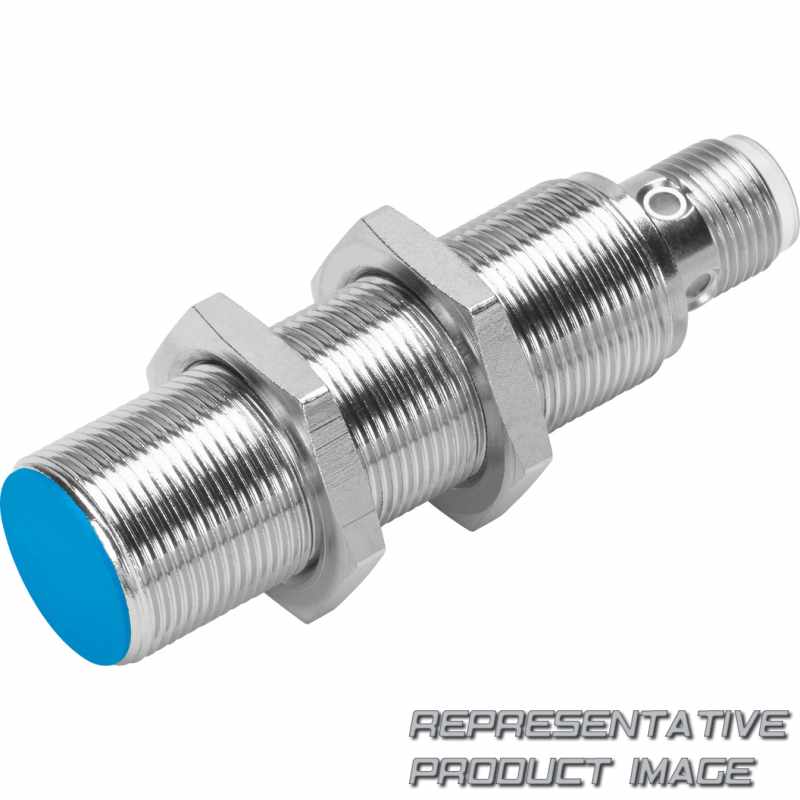

FESTO 538281 proximity sensor

Name: 538281 FESTO
Brand: FESTO
SKU: 672486-en-gbp
Price: 92.98 GBP
Availability: InStock

SIED-M18B-ZO-S-L

£92.98

available with 7 to 15 days delivery to United States

Specifications

Series (SIED)	Proximity sensor, inductive, for DC and AC voltage
Design (M18)	Round, M18x1
Mounting type (B)	Flush
Switching input/output (Z)	Contactless 2-wire

Switching element function (O)	N/C contact
Electrical connection (S)	Plug M8x1, 4-pin
Display (L)	Switching status
Housing material	Standard

Selection of sensor design		Standard
Additional information for sensor selection		For DC and AC voltage
Degree of protection		IP67
Material housing		Brass PA Nickel-plated
Mounting type		Flush
Type of mounting		Via lock nut
Electrical connection		2-pin M12x1 Plugs
No-load supply current		≤ 1,5 mA
Operational voltage range DC		20 V ... 320 V
Short circuit current rating		no
Voltage drop		≤ 8 V
Max. switching frequency AC		25 Hz
Hysteresis		0,04 mm ... 1,15 mm
Switching output		Non-contacting, 2-wire
Ambient temperature		-25 °C ... 85 °C
Assured operating distance		4,05 mm
Measuring principle		Inductive
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Electrical output		Non-contacting, 2-wire
Corrosion resistance class CRC		1 - Low corrosion stress
Switching status indication		Yellow LED
Product weight		50 g
Tightening torque		30 Nm
Size		M18
Reverse polarity protection		For all electrical connections
Mains frequency		50 Hz
Operational voltage range AC		20 V ... 265 V
Min. load current		5 mA
Max. output current		300 mA
Max. switching frequency DC		490 Hz
Switching element function		N/C contact
Repetition accuracy		0,15 mm
Reduction factors		Aluminium = 0.4 Stainless steel St 18/8 = 0.7 Copper = 0.3 Brass = 0.4 Steel St 37 = 1.0
Rated operating distance		5 mm
CE mark (see declaration of conformity)		To EU EMC Directive To EU Low Voltage Directive
Symbol		00992846
Design		Round
