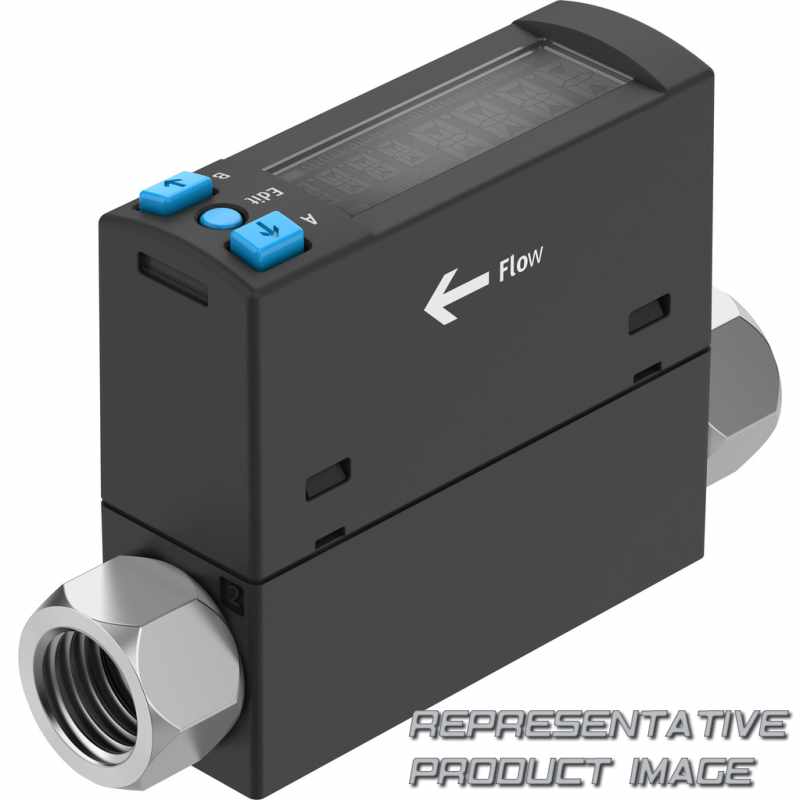

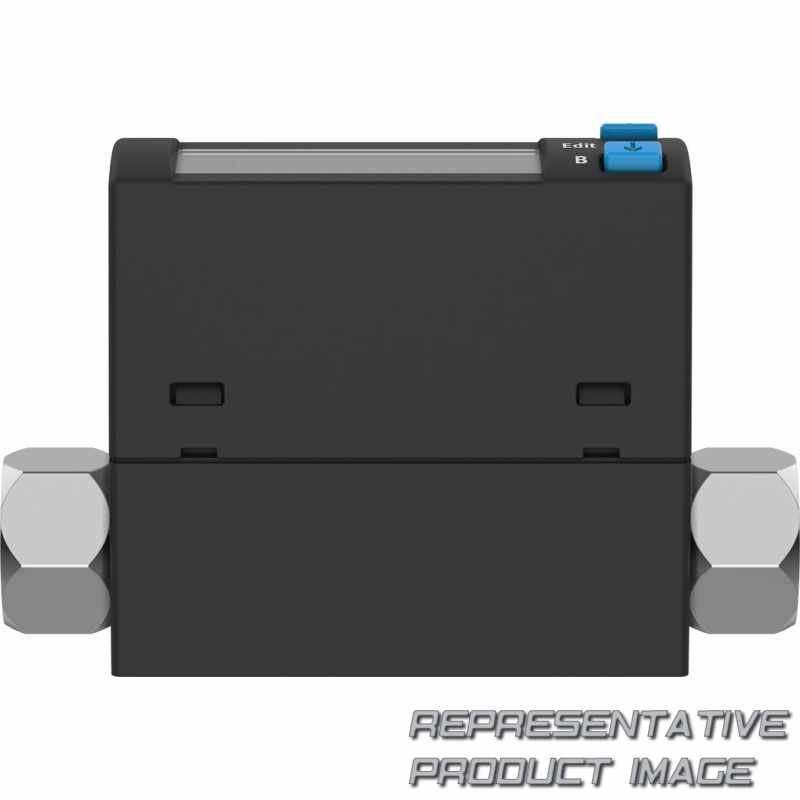

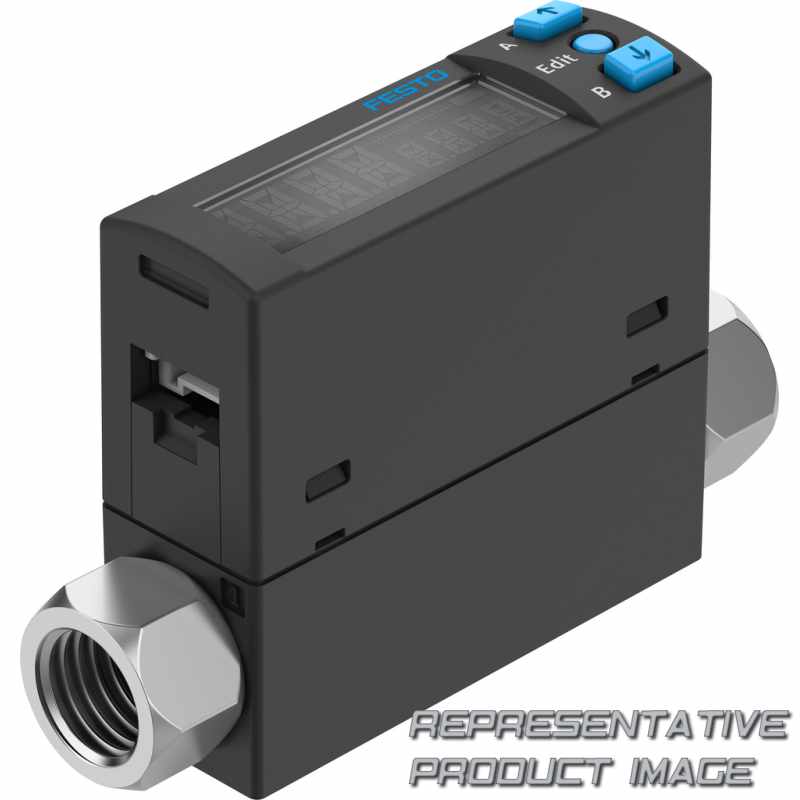

SFAH-100U-G14FS-PNLK-PNVBA-L1

£341.79

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SFAH)	Flow sensor
Flow measuring range (100)	Max. 100 l/min
Flow rate input (U)	Unidirectional
Pneumatic connection (G14)	G1/4
Thread type (F)	Female
Outlet orientation (S)	Straight
Electrical output 1 (PNLK)	PNP/NPN/IO-Link

Electrical output 2 (PNVBA)	PNP or NPN or 0 ... 10 V or 1 ... 5 V or 4 ... 20 mA
Electrical connection (L1)	Plug type L1
Mounting accessories	None
Electrical accessories	None
Protective devices	None
Certifi cate	None

Technical data

Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Corrosion resistance class CRC		2 - Moderate corrosion stress
Pressure drop		15 mbar
Protection against tampering		IO-Link PIN code
Displayable units		g g/min l l/min scft scft/h scft/min
Material in contact with the medium		Anodised wrought aluminium alloy Epoxy NBR PA-reinforced Silicon Silicon nitride High-alloy stainless steel
Product weight		90 g
Pneumatic connection		Female thread G1/4
Type of mounting		With accessories
Electrical connection 1, number of connections/cores		4
Electrical connection 1, connection type		Plugs
No-load supply current		≤ 25 mA
IO-Link, Data storage required		< 500 Byte
IO-Link, Service data IN		32-bit volume/mass measurement
IO-Link, Process data length IN		3 bytes
IO-Link, SIO-Mode support		Yes
IO-Link, Function classes		Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, Protocol version		Device V 1.1
Overload protection		Available
Min. load resistance voltage output		20 kOhm
Flow characteristic curve end value		100 l/min
Analogue output		0 - 10 V 4 - 20 mA 1 - 5 V
Switching element function		N/C or N/O contact, switchable
Switching output		2 x PNP or 2 x NPN, switchable
Temperature coefficient span in ± %FS/K		Typ. 0.15%FS/K
Repetition accuracy offset in ± %FS		0,2 %FS
Nominal temperature		23 °C
Media temperature		0 °C ... 50 °C
Operating pressure		-0,9 bar ... 10 bar
Start value for flow rate measuring range		2 l/min
Measuring principle		Thermal
Measured variable		Mass flow rate Volumetric flow rate
Certificate issuing authority		UL E322346
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00995795

LABS (PWIS) conformity		VDMA24364-B2-L
Protection class		III
Degree of protection		IP40
Setting options		IO-Link® Teach-in Via display and keys
Display type		Illuminated LCD, multi-colour
Material housing		PA-reinforced
Pneumatic connection, outlet direction		Straight
Mounting position		optional
Electrical connection 1, connection pattern		00995428
Electrical connection 1, connector system		Connection pattern L1J
Reverse polarity protection		For all electrical connections
Operational voltage range DC		22 V ... 26 V
IO-Link, Min. cycle time		4 ms
IO-Link, Process data content IN		1 bit BDC (volume monitoring) 14 bit PDV (measured flow value) 2 bit BDC (flow monitoring)
IO-Link, Port class		A
IO-Link, communication mode		COM2 (38.4 kBaud)
IO-Link, Profile		Smart sensor profile
Protocol		IO-Link®
Short circuit current rating		yes
Max. load resistance current output		500 Ohm
Flow characteristic curve start value		0 l/min
Max. output current		100 mA
Switching function		Window comparator Threshold value comparator Auto difference monitoring
Pressure influence span in ± %FS/bar		1 %FS/b.
Repetition accuracy span in ± %FS		0,8 %FS
Accuracy of flow rate		± (2% o.m.v. + 1% FS)
Ambient temperature		0 °C ... 50 °C
Operating medium		Argon Compressed air to ISO 8573-1:2010 [6:4:4] Nitrogen
End value for flow rate measuring range		100 l/min
Measurement method		Heat transfer
Flow direction		Unidirectional
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)
