| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 8 kN | ||

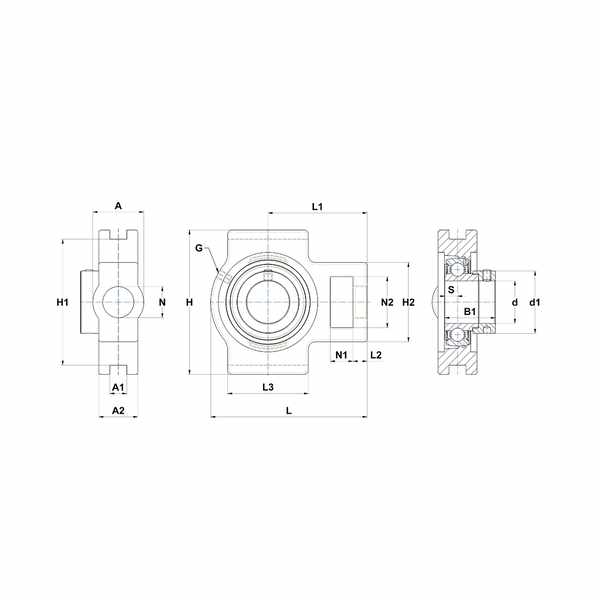

| S - Dist. cent. of raceway to face IR on side opp. lock. device | 7,5 mm | ||
| N1 - Length of attachment slot | 16 mm | ||
| L3 - Length of guidance slot/face | 51 mm | ||
| L1 - Distance attachment end face to bearing centerline | 60,5 mm | ||
| H2 - Housing height / width | 51 mm | ||
| H - Housing length, width or diameter | 89 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 38,1 mm | ||
| A2 - Width over loc. slot flange(T/ST)/width at mount. hole(EHE) | 24 mm | ||
| A - Housing width | 32 mm |
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 11 kN | ||
| N2 - Height of attachment slot | 32 mm | ||
| N - Mounting hole dimension | 19 mm | ||
| L2 - Thickness of attachment end | 8 mm | ||
| L - Housing length | 95 mm | ||
| H1 - Distance between bottoms of location slots | 76 mm | ||
| G - Grease fitting | M6x1 | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 31 mm | ||
| A1 - Width of location slot | 12 mm | ||
| Brand | SNR |
