| Material electrical contact | Brass White bronze coated | ||
| Housing colour | Black | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Note on materials | RoHS-compliant | ||
| CE marking (see declaration of conformity) | To UK regulations for electrical equipment | ||
| Ambient temperature | -40 °C ... 85 °C | ||
| Connection cross section | 0,75 mm² | ||
| Cable fitting | Pg7 | ||
| Current rating at 40°C | 4 A | ||
| Operational voltage range DC | ≤ 60 V | ||
| Product weight | 21,5 g | ||
| Type of mounting | Via threaded sleeve |
| Material union nut | Die-cast zinc Nickel-plated | ||
| Material housing | PBT | ||
| Pollution degree | 3 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| CE mark (see declaration of conformity) | To EU Low Voltage Directive | ||
| Degree of protection | IP67 | ||
| Permissible cable diameter | 4 mm ... 6 mm | ||
| Immunity to surge | 1,5 kV | ||
| Operational voltage range AC | ≤ 60 V | ||

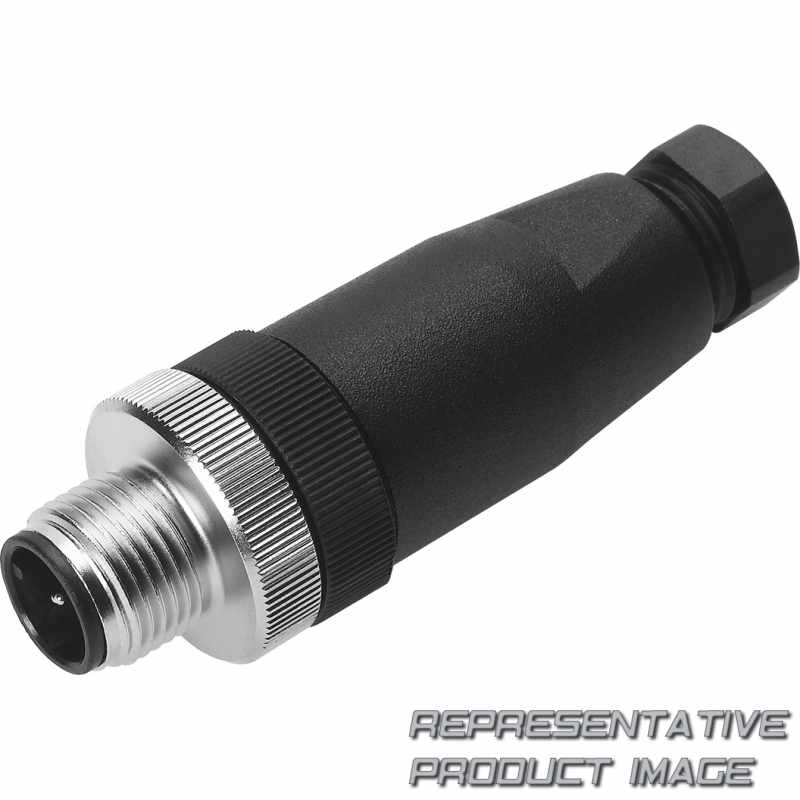

| Electrical connection | 5-pin Type A M12x1 round plug connector Straight plug connector/screw terminal | ||
| Mounting position | optional | ||
| Based on standard | EN 61076-2-101 EN 61984 |
