| Material electrical contact | Gold-plated brass | ||
| Material screw-type lock | Die-cast zinc, nickel-plated | ||
| Material housing | PA | ||
| Pollution degree | 3 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| CE mark (see declaration of conformity) | To EU Low Voltage Directive | ||
| Note on degree of protection | In assembled state | ||
| Nominal cross section conductor | 0,14 mm² ... 0,5 mm² | ||
| Cable fitting | Pg7 | ||
| Current rating at 40°C | 3 A | ||
| Operational voltage range DC | ≤ 60 V | ||
| Electrical connection 2, connector system | Screw terminal | ||

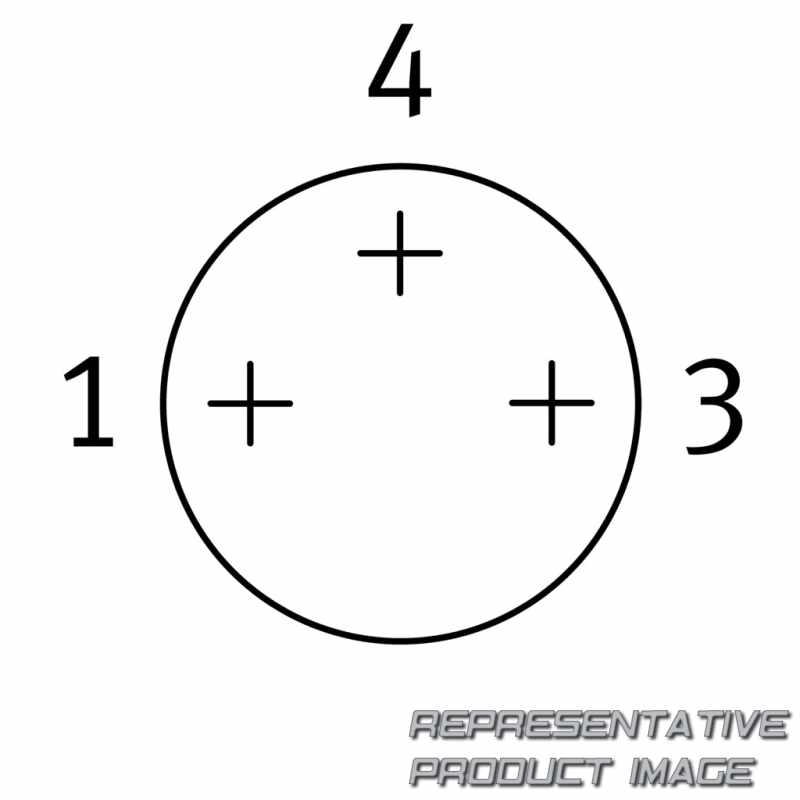

| Electrical connection 1, connection pattern | 00991155 | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, cable outlet | Straight | ||
| Electrical connection 1, design | Round | ||
| Product weight | 6 g | ||
| Conforms to standard | EN 61076-2-104 EN 61984 |
| Material seals | NBR | ||
| Housing colour | Black | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Note on materials | RoHS-compliant | ||
| CE marking (see declaration of conformity) | To UK regulations for electrical equipment | ||
| Ambient temperature | -40 °C ... 85 °C | ||
| Degree of protection | IP65 | ||
| Cable diameter | 2,5 mm ... 5 mm | ||
| Immunity to surge | 1,5 kV | ||
| Operational voltage range AC | ≤ 60 V | ||
| Electrical connection 2, number of connections/cores | 8 | ||
| Electrical connection 2, function | Controller side | ||
| Electrical connection 1, type of mounting | Screw-type lock with hexagon A/F 9 mm and longitudinal knurl | ||
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 | ||
| Electrical connection 1, connection type | Plugs | ||
| Size of pack | 1 | ||
| Mounting position | optional |
