| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Degree of protection | IP40 | ||
| Switching status indication | Yellow LED | ||
| Product weight | 19 g | ||
| Mounting position | optional | ||

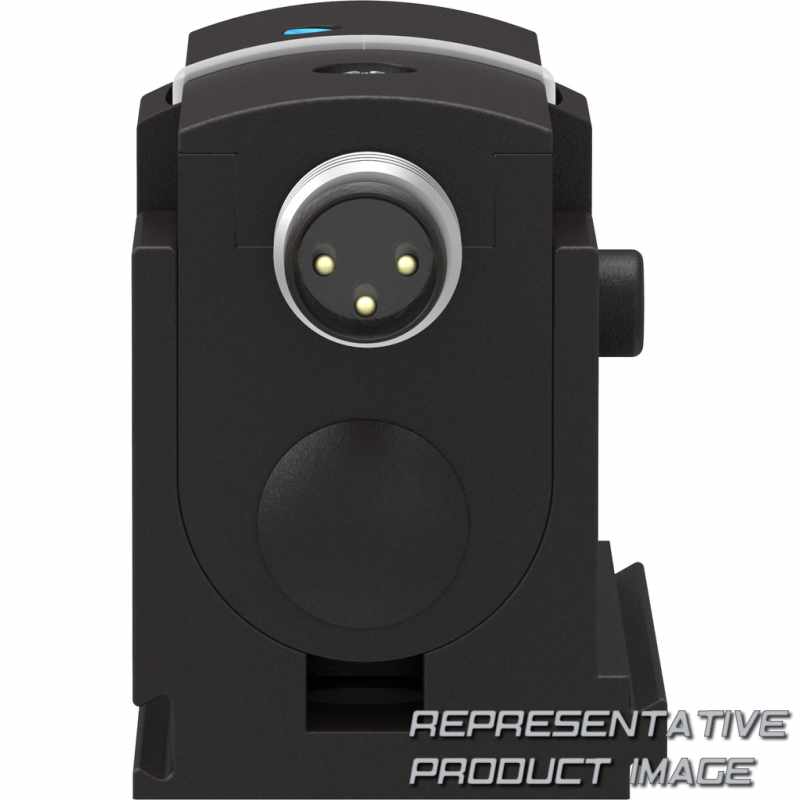

| Electrical connection | 3-pin M8x1 Plugs To EN 60947-5-2 Round design | ||
| Operational voltage range DC | 15 V ... 30 V | ||
| Max. output current | 100 mA | ||
| Switching function | Freely programmable | ||
| Temperature coefficient in ± %FS/K | 0,05 %FS/K | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| Note on operating and pilot medium | Lubricated operation possible | ||
| End value for pressure measuring range | 10 bar | ||
| Measurement method | Piezoresistive pressure sensor | ||
| Note on materials | RoHS-compliant | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00991164 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Setting range threshold value | 0 % ... 100 % | ||
| Material housing | PA POM | ||

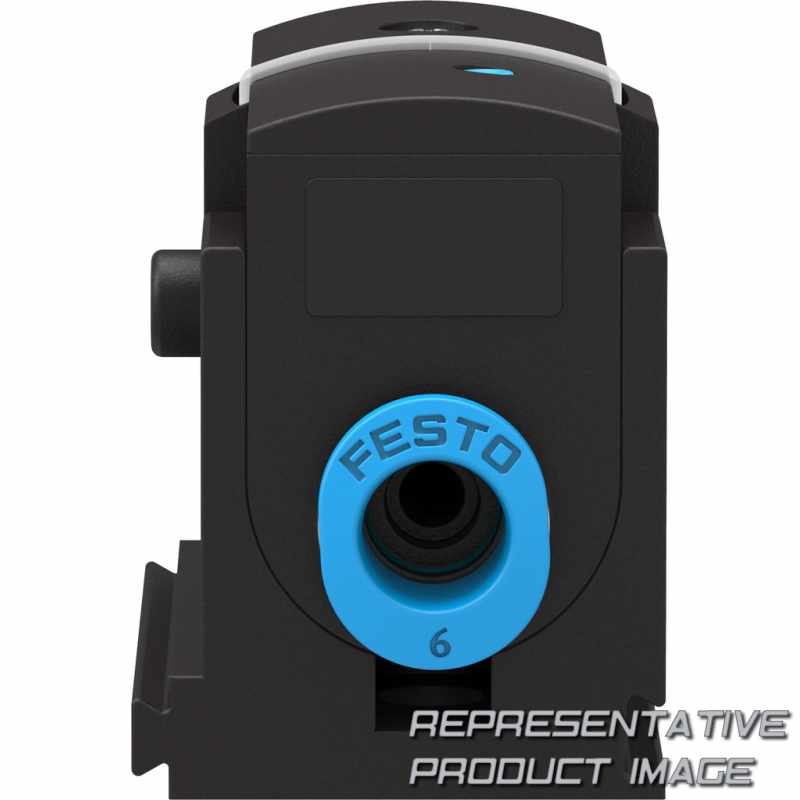

| Pneumatic connection | QS-6 | ||
| Type of mounting | With accessories | ||
| Reverse polarity protection | For all electrical connections | ||
| Short circuit current rating | yes | ||
| Switching element function | Switchable | ||
| Switching output | PNP | ||
| Repetition accuracy in ± %FS | 0,3 %FS | ||
| Media temperature | 0 °C ... 50 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Start value for pressure measuring range | 0 bar | ||
| Measured variable | Relative pressure | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark c UL us - Recognized (OL) |
