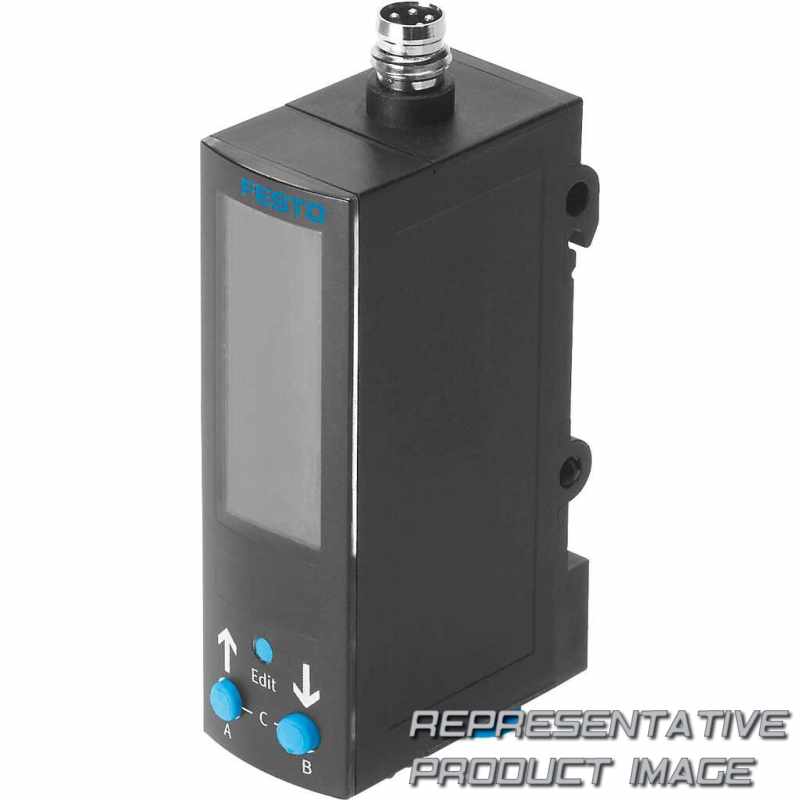

FESTO 540203 pressure sensor

Name: 540203 FESTO
Brand: FESTO
SKU: 666672-en-gbp
Price: 249.16 GBP
Availability: InStock

SDE3-D2D-B-HQ4-2P-M8

£249.16

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SDE3)	Piezoresistive pressure sensor with display
Pressure measuring range (D2)	0 ... 2 bar
Pressure inlet (D)	2 x relative pressure, independent
Display (B)	Values in bar
Mounting/pneumatic connection (HQ4)	H-rail mounting, push-in connector 4 mm

Corrosion resistance class CRC		2 - Moderate corrosion stress
Setting range hysteresis		0 % ... 90 %
Protection against tampering		PIN code
Switching status indication		LCD yellow
Material housing		PA-reinforced PC
Pneumatic connection		QS-4
Type of mounting		With through-hole With H-rail
Reverse polarity protection		For all electrical connections
Short circuit current rating		Pulsed
Reproducibility of switching value		0,3 %
Switching function		Freely programmable
Accuracy in ± % FS		2 %FS
Media temperature		0 °C ... 50 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Start value for pressure measuring range		0 bar
Measured variable		2 x relative pressure
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991165

Degree of protection		IP65
Setting range threshold value		0 % ... 100 %
Setting options		Teach-in
Display type		Illuminated LCD
Product weight		37 g
Mounting position		optional

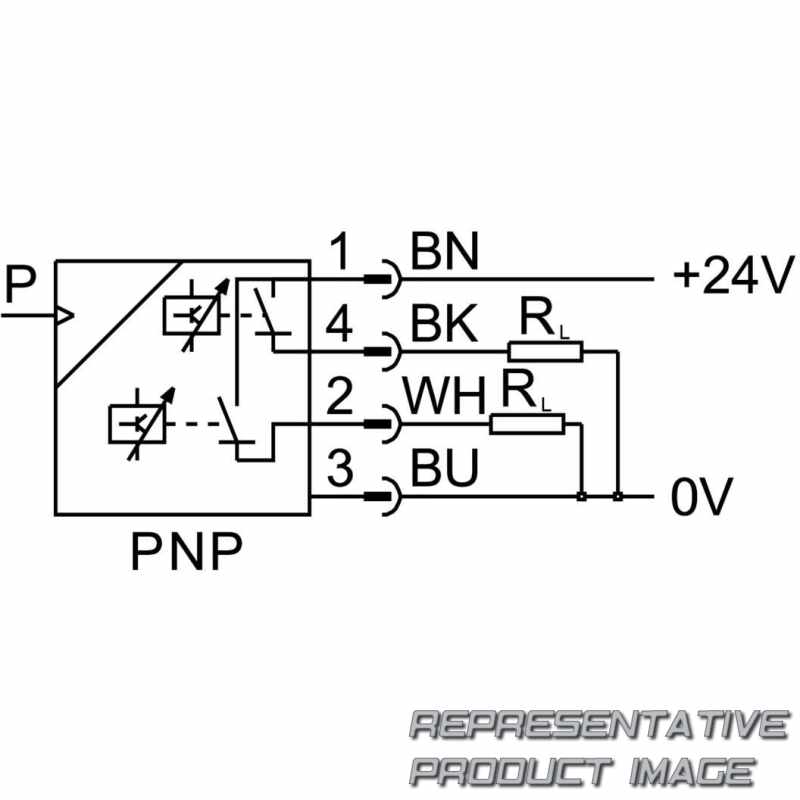

Electrical connection		4-pin M8x1 Plugs To EN 60947-5-2 Round design
Operational voltage range DC		15 V ... 30 V
Max. output current		100 mA
Switching element function		Switchable
Switching output		2xPNP
Ambient temperature		0 °C ... 50 °C
Note on operating and pilot medium		Lubricated operation possible
End value for pressure measuring range		2 bar
Measurement method		Piezoresistive pressure sensor with display
Note on materials		RoHS-compliant
Approval		RCM trademark c UL us - Recognized (OL)
