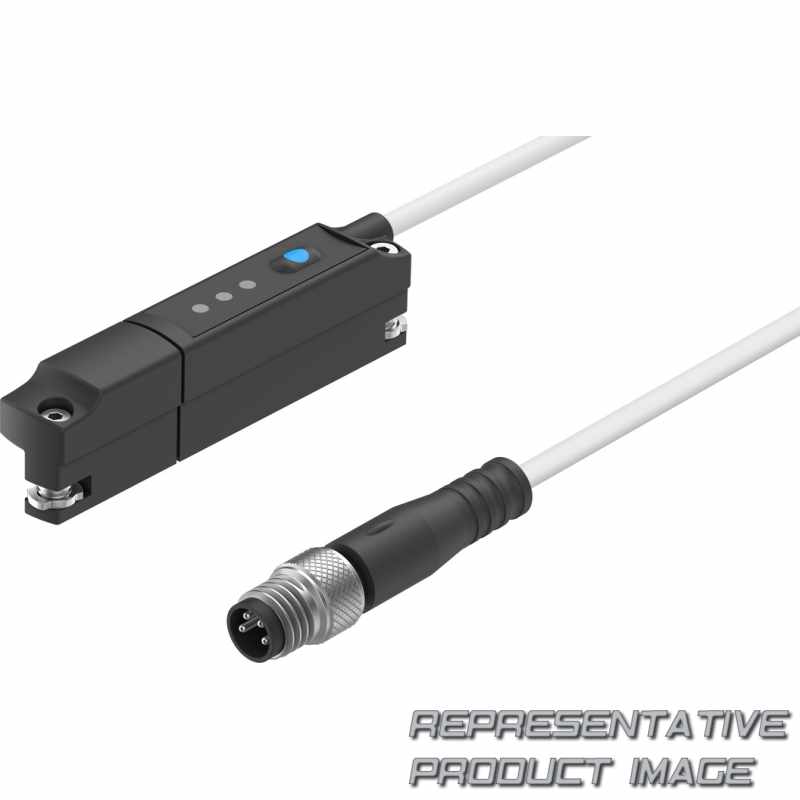

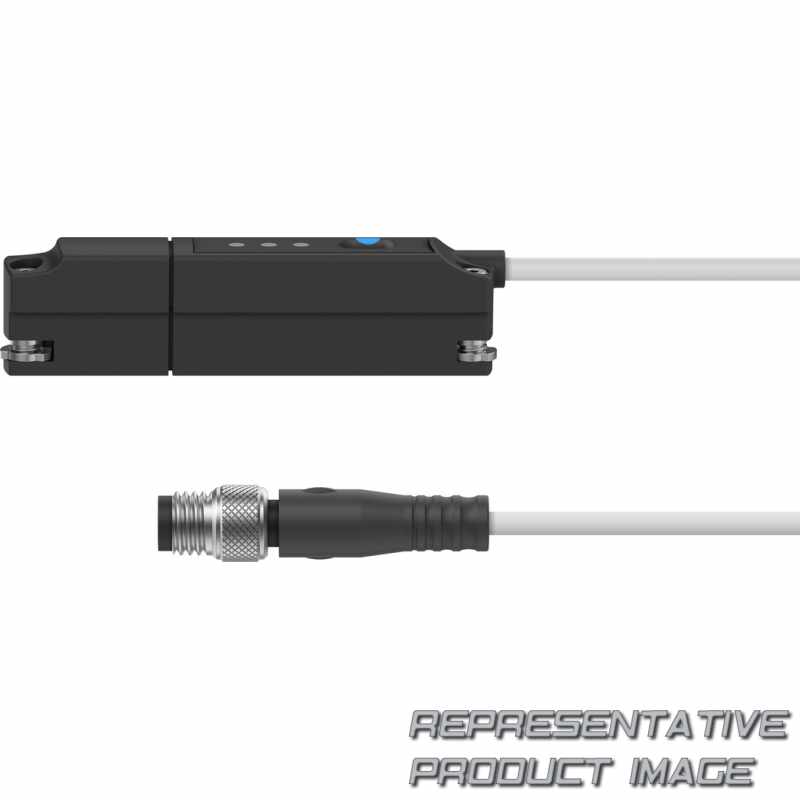

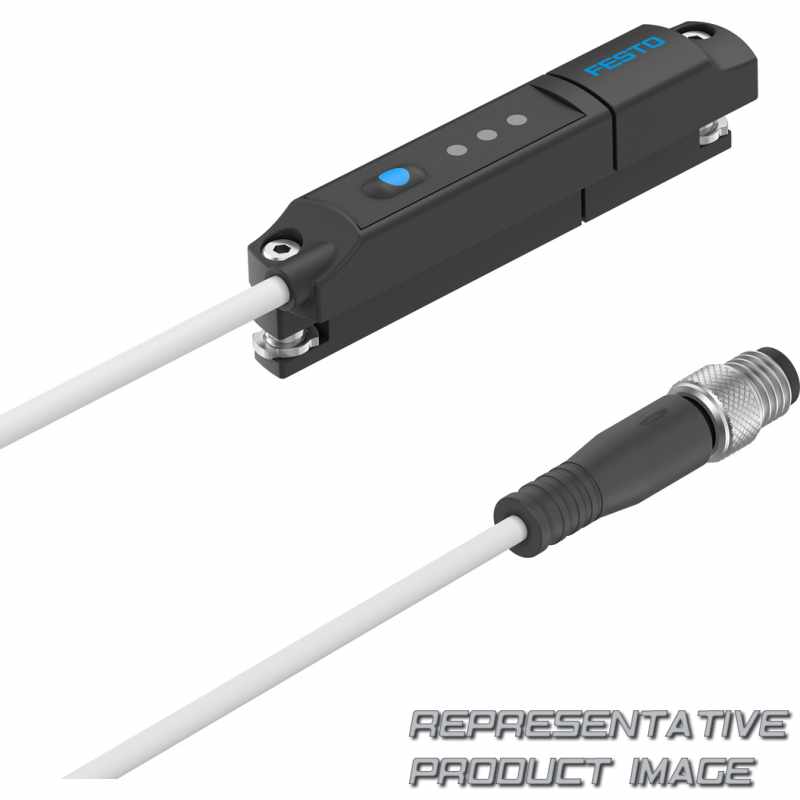

FESTO 8115394 position transmitter

Name: 8115394 FESTO
Brand: FESTO
SKU: 661873-en-gbp
Price: 255.38 GBP
Availability: InStock

SDAT-MHS-M50-1L-SV-E-0.3-M8

£255.38 ~~£303.59~~ -15%

11 pcs. with 2 to 5 days delivery to United Kingdom

Specifications

Series (SDAT)	Position transmitter, magnetic
Sensor version (M)	Can be inserted in the slot
Sensor principle (HS)	Hall sensor
Measuring range (M50)	50 mm
Nominal operating voltage (1)	24 V DC

Display (L)	LED
Switching input/output (SV)	PNP, 1 analogue output 0 ... 10 V, IO-Link
Cable characteristic (E)	Suitable for energy chains/robot applications
Cable length [m] (0.3)	0.3 m
Electrical connection (M8)	Plug M8, A-coded

LABS (PWIS) conformity		VDMA24364-B2-L
Ambient temperature with moving cable		-20 °C ... 70 °C
Status indication		Red LED
Ready status indication		Green LED
Material union nut		Nickel-plated brass
Product weight		19 g
Type of mounting		Screw-clamped Insertable in the slot from above
Cable sheath colour		grey
Cable length		0,3 m
Material electrical contact		Copper alloy Bronze
Electrical connection 1, connection pattern		00991171
Electrical connection 1, number of connections/cores		4
Electrical connection 1, connection type		Cable with plug
Residual ripple		10 %
IO-Link, Min. cycle time		1 ms
IO-Link, Process data length IN		2 bytes
IO-Link, SIO-Mode support		Yes
IO-Link, Function classes		Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, Protocol version		Device V 1.1
Overload protection		Available
Min. load resistance voltage output		20 kOhm
Sensitivity		0,18 V/mm
Voltage drop		2,5 V
Max. output current		100 mA
Switch-off time		< 2 ms
Switching element function		N/C or N/O contact, switchable
Repetition accuracy		0,1 mm
Max. travel speed		3 m/s
Ambient temperature		-25 °C ... 70 °C
Measuring principle		Magnetic Hall
Note on materials		RoHS-compliant Free of halogen
CE marking (see declaration of conformity)		To UK instructions for EMC
Approval		RCM trademark c UL us listed (OL)
Design		For T-slot

Degree of protection		IP65 IP68
Setting options		IO-Link® Pushbutton
Switching status indication		Yellow LED
Material foil		Polyester
Material housing		Nickel-plated brass PA-reinforced Polyester High-alloy stainless steel
Mounting position		optional
Material cable sheath		TPE-U(PUR)
Cable characteristic		Suitable for energy chains/robot applications
Test conditions cable		Bending strength: to Festo standard Energy chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300,000 cycles, ± 270°/0.1 m
Connection outlet orientation		In-line
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, connector system		M8x1, A-coded, to EN 61076-2-104
Reverse polarity protection		For all electrical connections
Operational voltage range DC		15 V ... 30 V
IO-Link, Process data content IN		12 bit PDV (measured position value) 4 bit BDC (position monitoring)
IO-Link, Port class		A
IO-Link, communication mode		COM3 (230.4 kBaud)
IO-Link, Profile		Smart sensor profile
Protocol		I-Port IO-Link®
Short circuit current rating		yes
Typical linearity error in ± mm		±0.25 mm
Analogue output		0 - 10 V
Max. switching capacity DC		2,7 W
Max. switching frequency		1.000 Hz
Switch-on time		< 2 ms
Switching output		PNP
Displacement resolution		0,05 mm
Typical sampling interval		1 ms
Sensing range		0 µm ... 50.000 µm
Measured variable		Position
KC mark		KC-EMV
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00997376
