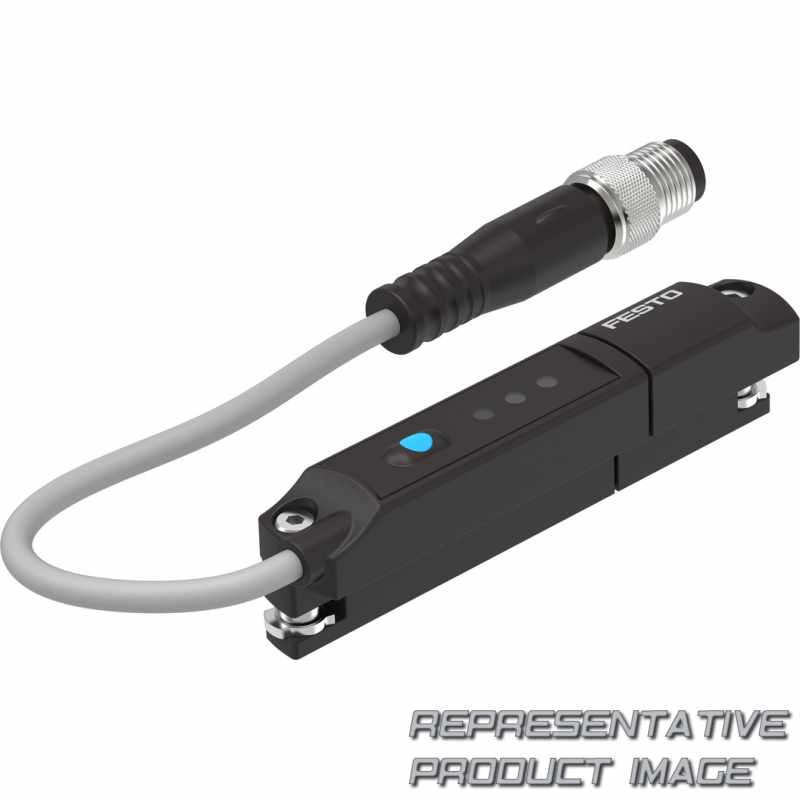

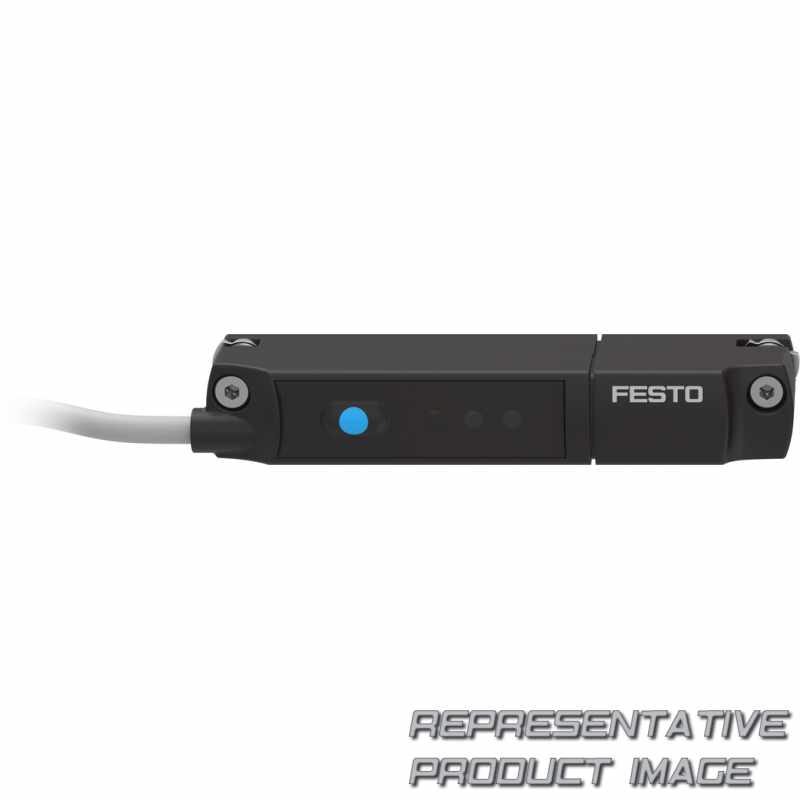

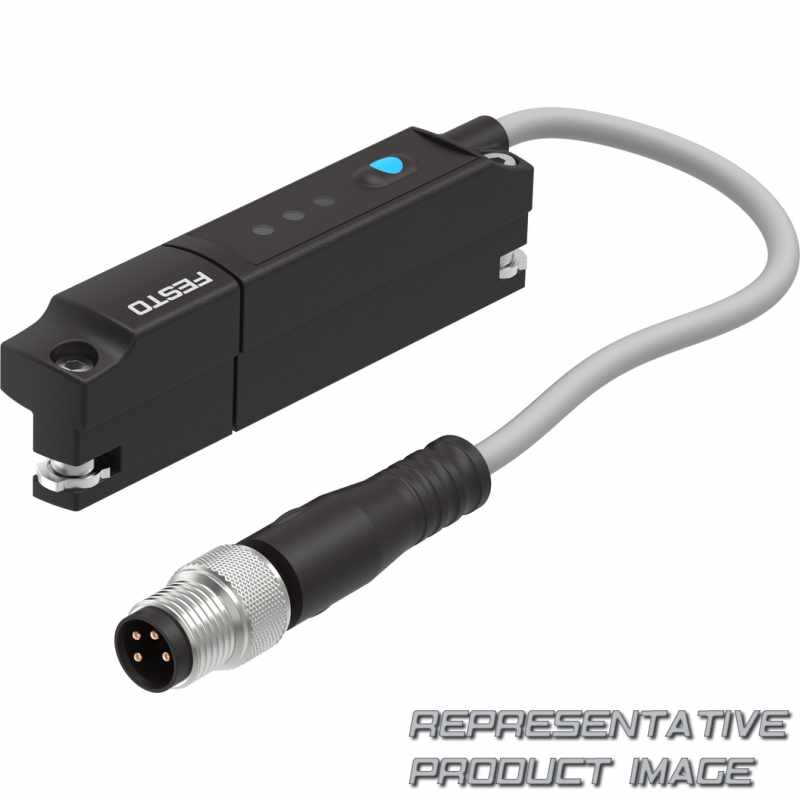

| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Ambient temperature with moving cable | -20 °C ... 70 °C | ||
| Ready status indication | Green LED | ||
| Material union nut | Nickel-plated brass | ||
| Product weight | 19 g | ||
| Type of mounting | Screw-clamped Insertable in the slot from above | ||
| Cable sheath colour | grey | ||
| Cable length | 0,3 m | ||
| Material electrical contact | Gold-plated copper alloy | ||
| Electrical connection 1, connection pattern | 00991171 | ||
| Electrical connection 1, number of connections/cores | 4 | ||
| Electrical connection 1, connection type | Cable with plug | ||
| Residual ripple | 10 % | ||
| Overload protection | Available | ||
| Max. load resistance current output | 500 Ohm | ||
| Sensitivity | 0,32 mA/mm | ||
| Displacement resolution | 0,05 mm | ||
| Typical sampling interval | 1 ms | ||
| Sensing range | 0 µm ... 50.000 µm | ||
| Measured variable | Position | ||
| KC mark | KC-EMV | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00995389 |
| Degree of protection | IP65 IP68 | ||
| Status indication | Red LED | ||
| Material foil | Polyester | ||
| Material housing | Nickel-plated brass PA-reinforced Polyester High-alloy stainless steel | ||
| Mounting position | optional | ||
| Material cable sheath | TPE-U(PUR) | ||
| Cable characteristic | Suitable for energy chains/robot applications | ||
| Test conditions cable | Bending strength: to Festo standard Energy chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300,000 cycles, ± 270°/0.1 m | ||
| Connection outlet orientation | In-line | ||
| Electrical connection 1, type of mounting | Screw-type lock | ||
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 | ||
| Reverse polarity protection | For all electrical connections | ||
| Operational voltage range DC | 15 V ... 30 V | ||
| Short circuit current rating | yes | ||
| Typical linearity error in ± mm | ±0.25 mm | ||
| Analogue output | 4 - 20 mA | ||
| Max. travel speed | 3 m/s | ||
| Ambient temperature | -25 °C ... 70 °C | ||
| Measuring principle | Magnetic Hall | ||
| Note on materials | RoHS-compliant Free of halogen | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Design | For T-slot |
