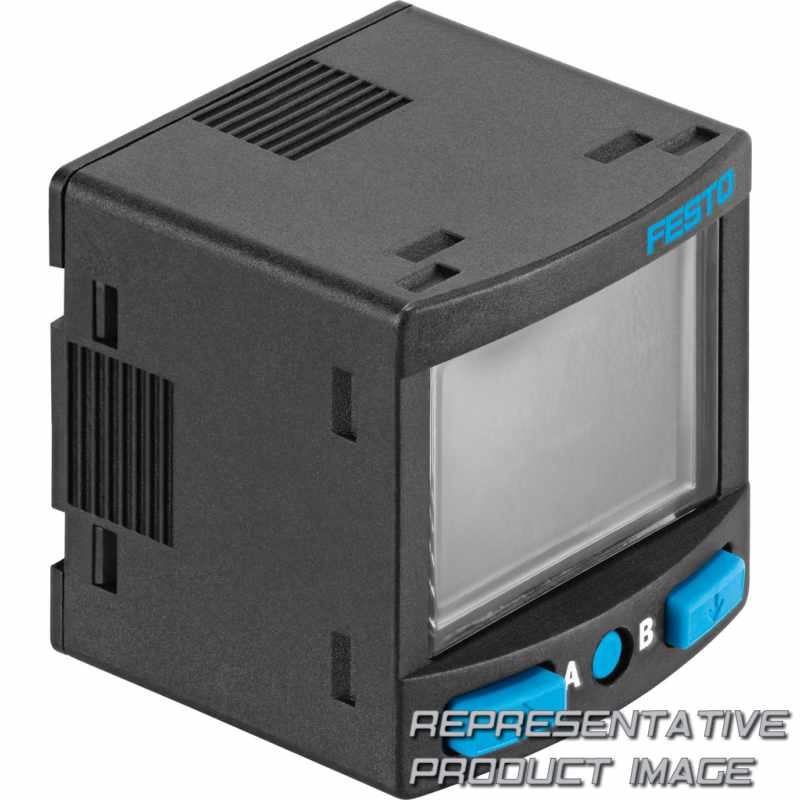

FESTO 8035556 signal converter

Name: 8035556 FESTO
Brand: FESTO
SKU: 686608-en-gbp
Price: 126.19 GBP
Availability: InStock

SCDN-2A-EC4-PNLK-L1

£126.19

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SCDN)	Signal converter
Electrical input (2A)	2 x 0 ... 20 mA
Electrical connection, input (EC)	Socket EC

LABS (PWIS) conformity		VDMA24364-B2-L
Degree of protection		IP40
Setting options		IO-Link® Teach-in Via display and keys
Material housing		PA-reinforced
Type of mounting		Front panel mounting Via wall/surface bracket
Electrical connection 2, number of connections/cores		4
Electrical connection 2, connection type		2x socket
Electrical connection 1, number of connections/cores		4
Electrical connection 1, connection type		Plugs
Operational voltage range DC		15 V ... 30 V
IO-Link, Min. cycle time		5 ms
IO-Link, Process data length IN		5 bytes
IO-Link, Port class		A
IO-Link, communication mode		COM2 (38.4 kBaud)
IO-Link, Profile		Smart sensor profile
Protocol		IO-Link®
Max. output current		100 mA
Switching function		Freely programmable
Repetition accuracy in ± %FS		0,2 %FS
Typical sampling interval		1 ms
analog input		0 - 20 mA
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)

Corrosion resistance class CRC		2 - Moderate corrosion stress
Protection against tampering		IO-Link PIN code
Display type		Illuminated LCD, multi-colour
Product weight		23 g
Electrical connection 2, connection pattern		00995750
Electrical connection 2, connector system		Connection pattern EC
Electrical connection 1, connection pattern		00995428
Electrical connection 1, connector system		Connection pattern L1J
Reverse polarity protection		For all electrical connections
IO-Link, Data storage required		500 Byte
IO-Link, Process data content IN		14 bit PDV (measured value InA) 14 bit PDV (measured value InB) 2 bit BDC (measured value monitoring)
IO-Link, Process data length OUT		0 bytes
IO-Link, SIO-Mode support		Yes
IO-Link, Function classes		Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, Protocol version		Device V 1.1
Short circuit current rating		yes
Switching element function		N/C or N/O contact, switchable
Switching output		2 x PNP or 2 x NPN, switchable
Accuracy in ± % FS		0,5 %FS
Ambient temperature		0 °C ... 50 °C
Measured variable		Current
Certificate issuing authority		UL E322346
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00995688
