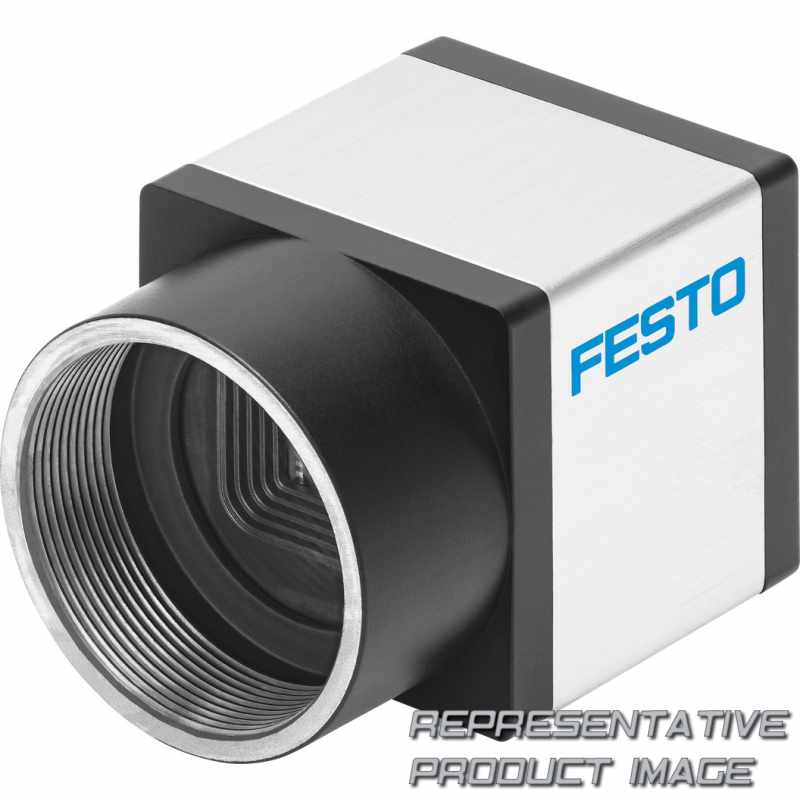

FESTO 8066466 camera head

Name: 8066466 FESTO
Brand: FESTO
SKU: 668911-en-gbp
Price: 2501.26 GBP
Availability: SoldOut

SBPB-R2B-U3-1E1A-C

£2,501.26 Limited stock only available on quotation

Specifications

Material housing		Anodised wrought aluminium alloy
Input/output interface, function		Without function
USB interface, connection technology		USB 3.0 type B micro
USB interface, function		Power supply Communication
Sensor type		Monochrome
Exposure time		9 µs ... 2.000.000 µs
Ambient temperature		0 °C ... 40 °C
Note on degree of protection		In assembled state
Relative air humidity		20 - 80%
CE mark (see declaration of conformity)		To EU EMC Directive
Permissible voltage fluctuations		+/- 5 %
Nominal operating voltage DC		5 V
Length		49 mm
Width		29 mm
Lens mounting		C mount

Note on materials		RoHS-compliant
USB interface, number of pins/wires		10
USB interface, type of connection		Socket
Working distance		Depends on the lens chosen
Image rate (complete picture)		60 fps
Product weight		52 g
Environmental conditions		Screened from extreme external light sources Cleanest possible ambient air Dry
Degree of protection		IP30
Storage temperature		-20 °C ... 60 °C
KC mark		KC-EMV
Electrical power consumption		1,3 W ... 1,5 W
Type of mounting		Via mounting kit
Height		29 mm
Field of view		Depends on the lens chosen
Sensor resolution		1280 x 1024 pixels (SXGA)
