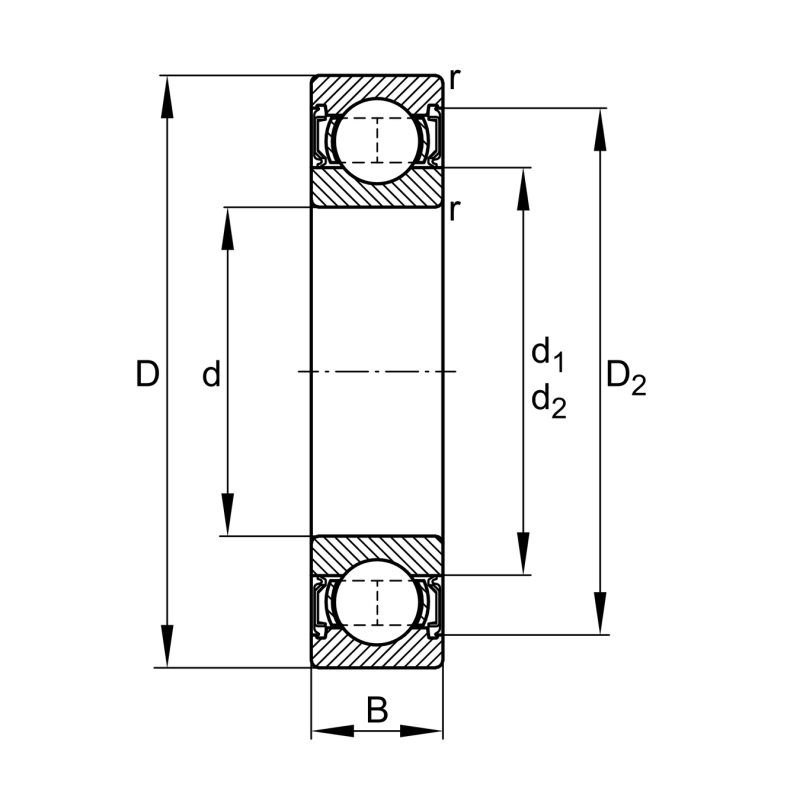

| Minimum chamfer dimension | rmin | 0.30 | mm |
| Shoulder diameter inner ring | d1 | 33.10 | mm |
| Caliber diameter outer ring | D2 | 39.20 | mm |
| Bore diameter | d | 30 | mm |
| Width | B | 7 | mm |
| Basic static load rating, radial | C0r | 2,750 | |
| Limiting speed | nG | 8,100 |
| Outside diameter | D | 42 | mm |
| Basic dynamic load rating, radial | Cr | 3,780 | |
| Fatigue load limit, radial | Cur | 154 | N |

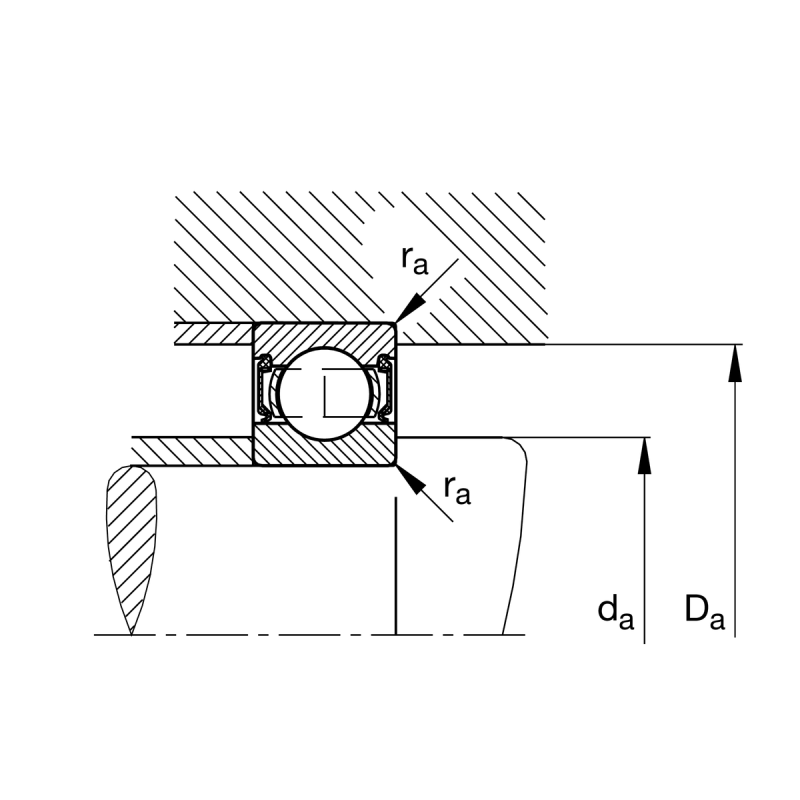

| Minimum diameter shaft shoulder | da min | 32 | mm |
| Maximum fillet radius | ra max | 0.30 | mm |
| Maximum diameter of housing shoulder | Da max | 40 | mm |
