| connection thread lubrication | 1/4"-28 UNF | ||

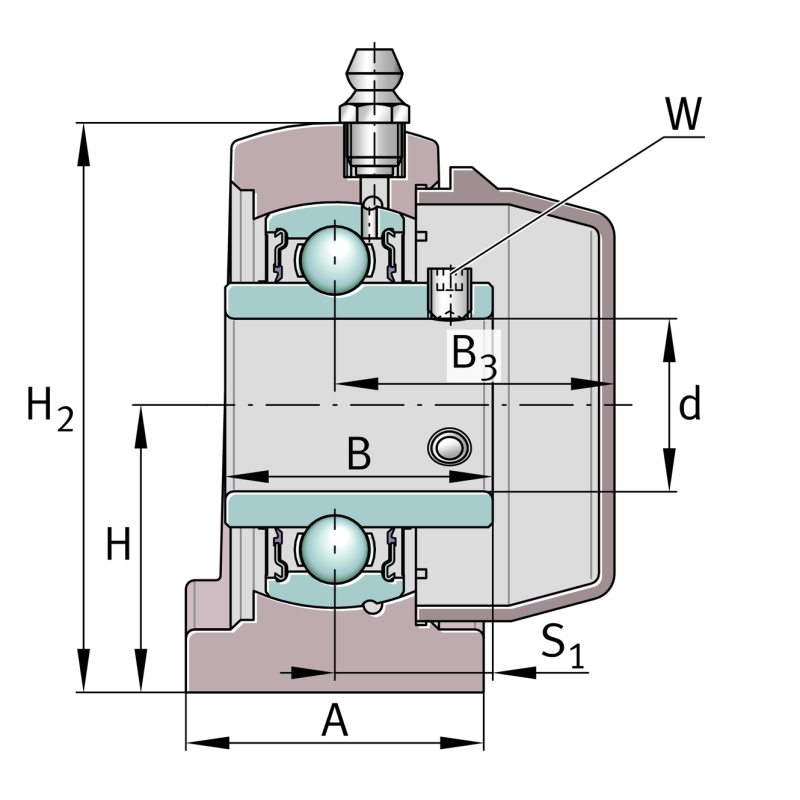

| Width | B | 38.10 | mm |
| Distance shaft axis | h | 42.90 | mm |
| Distance raceway to locking collar | S1 | 22.20 | mm |
| Width (base) | A | 42.50 | mm |
| Width of flats | W | 3 | mm |
| Distance fixing bore | J | 76.20 | mm |
| Thread fixing bore | K | M10 |
| Height | T | 84 | mm |
| Bore diameter | d | 30 | mm |
| length | L | 101 | mm |
