| Weight | 0.36 kg | ||
| product family | 2 ways | ||
| Sealing Material | NBR | ||
| Coil | D36 | ||
| Nominal flow | 150 l/min | ||
| Type of connection | Screw-in cartridge valve | ||
| Spool Poppet | Poppet type | ||
| Positions | 2 | ||
| Ports number | 2 | ||

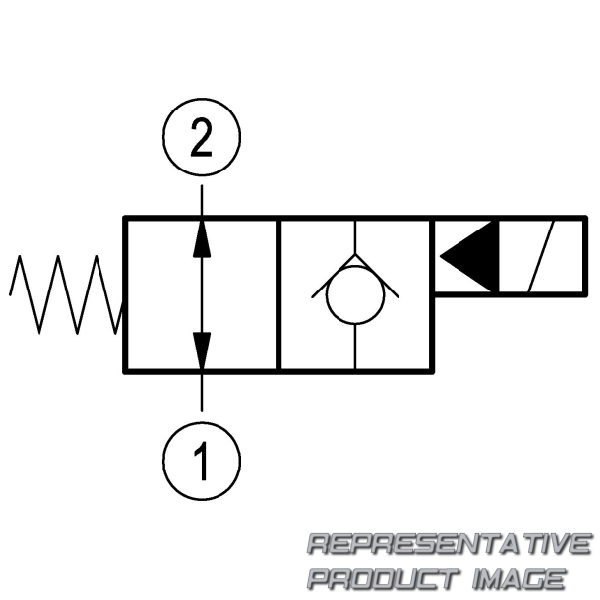

| Product family classification | Solenoid operated valves pilot operated poppet type 2-way normally open |
| product type | VEI | ||
| Hydraulic fluid | HL,HLP | ||
| Coil integrated | To be ordered separately | ||
| Type of actuation | Solenoid-actuated on/off | ||
| cavity | 021-E | ||
| Direct - Pilot | Pilot operated | ||
| Normal position | Normally open | ||
| Operating pressure, max. | 350 bar | ||
| Product family type | VEI |
