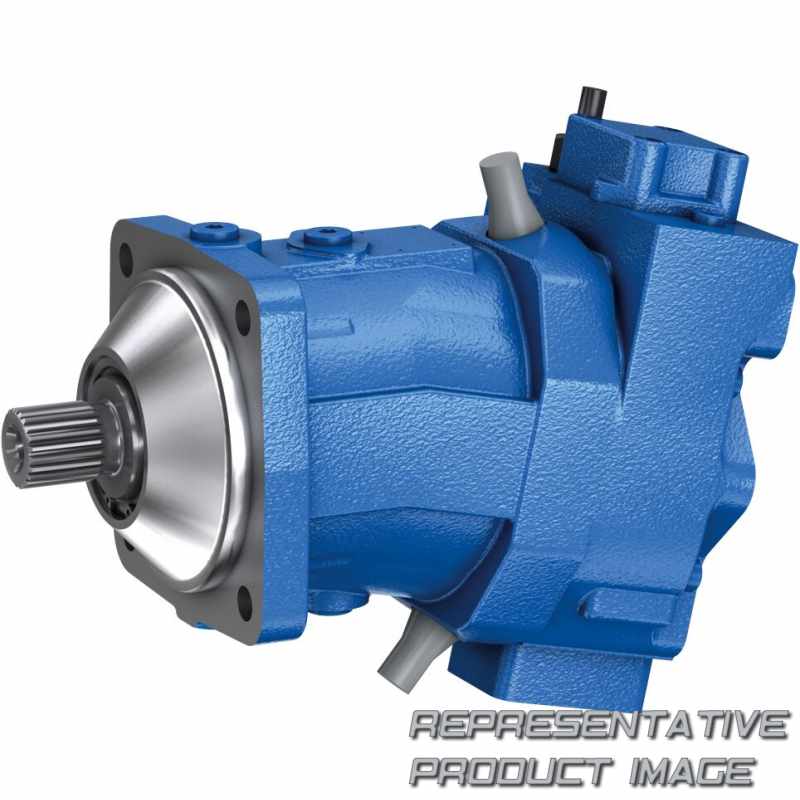

REXROTH R902230091 axial-piston pump

Name: R902230091 REXROTH
Brand: REXROTH
SKU: 241376-en-gbp
Price: 8250.28 GBP
Availability: InStock

A7VO160EP/63R-NPB01 GO2EU

£8,250.28 ~~£12,748.65~~ -35%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Seal	NBR, WDR-FKM (Std up to NG160)

Weight	77.10Kg

Remote LR (from size250)		Wthout
elec. adjustm.(up to size 160)		Standard
Remote pressure contol		Without
Paint/top coat		without
Language code f. test certif.		without
Approval Company (external)		Standard without acceptance
Port U		M22x1.5 plugged
Port X1		M14x1.5 plugged
Suction Connection Port S		SAE 3" mount.thr. M16
solenoid design		24V
Working Press.at Min.Outp.Flow		50 bar
Range of Regulation max.in mA		400 mA
max. Pump Speed		1,900
Max. Output Flow		294.0 l/min
Port plate for service lines		SAE A/B and S rear
Shaft end size		Shaft end AS14X9X70
Sealing Material		NBR, WDR-FKM (Std up to NG160)
Series		63
Control device		el. d.24V
Type of Operation		Open circuit

Stroke limiter (from Size 250)		without
Pres.control w. Load-Sensing		without
Stroke limiter		Wthout
Paint/Primer		RAL 9005 jet black
Test certificate		without
Control port pos. connector		to drive shaft + rotated to A3
Port B		SAE 1 1/4"mount.thr.M14
Port T1		without
Port A		Without
Working Press.at Max.Outp.Flow		50 bar
Limitation of displacement		ohne (Standard)
Start of control at cont.circ.		200.0 mA
Min. Output Flow		0.0 l/min
Working Pressure max.		350.0 bar
Mounting flange		4-hole ISO 3019-2
Shaft End		Parallel keyed DIN6885
Direction of rotation		right-hand (view on shaft end)
Pressure Cut-Off		Without
Size (Displacement)		160 cm³
Product (Axial piston unit)		A7VO
