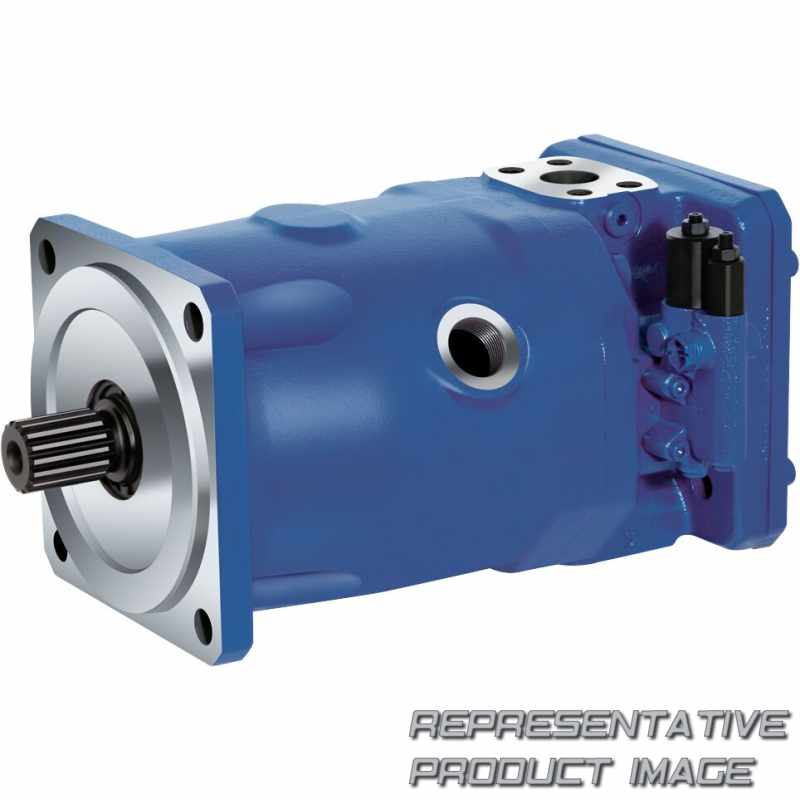

REXROTH R902230087 axial-piston pump

Name: R902230087 REXROTH
Brand: REXROTH
SKU: 241343-en-gbp
Price: 6046.87 GBP
Availability: InStock

A7VO107DR/63R-NPB01 GO2EU

£6,046.87 ~~£9,343.75~~ -35%

available with 7 to 15 days delivery to United States

Specifications

Seal	NBR, WDR-FKM (Std up to NG160)

Weight	51.70Kg

Product (Axial piston unit)		A7VO
Size (Displacement)		107 cm³
Pressure Cut-Off		Without
Direction of rotation		right-hand (view on shaft end)
Shaft End		Parallel keyed DIN6885
Mounting flange		4-hole ISO 3019-2
Working Pressure max.		350.0 bar
Min. Output Flow		0.0 l/min
Adjustment of pressure control		350
Working Press.at Min.Outp.Flow		50 bar
solenoid design		without
Suction Connection Port S		SAE 2 1/2" mount.thr. M12
Port X1		without
Port U		M18x1.5 plugged
Test certificate		without
Paint/Primer		RAL 9005 jet black
Remote LR (from size250)		Wthout
elec. adjustm.(up to size 160)		ohne
Remote pressure contol		Without

Type of Operation		Open circuit
Control device		Pressure controller
Series		63
Sealing Material		NBR, WDR-FKM (Std up to NG160)
Shaft end size		Shaft end AS12X8X63
Port plate for service lines		SAE A/B and S rear
Max. Output Flow		222.0 l/min
max. Pump Speed		2,150
Limitation of displacement		ohne (Standard)
Working Press.at Max.Outp.Flow		50 bar
Port A		Without
Port T1		M12x1.5 open
Port B		SAE 1" mount.thr. M12
Approval Company (external)		Standard without acceptance
Language code f. test certif.		without
Paint/top coat		without
Pres.control w. Load-Sensing		without
Stroke limiter		Wthout
Stroke limiter (from Size 250)		without
