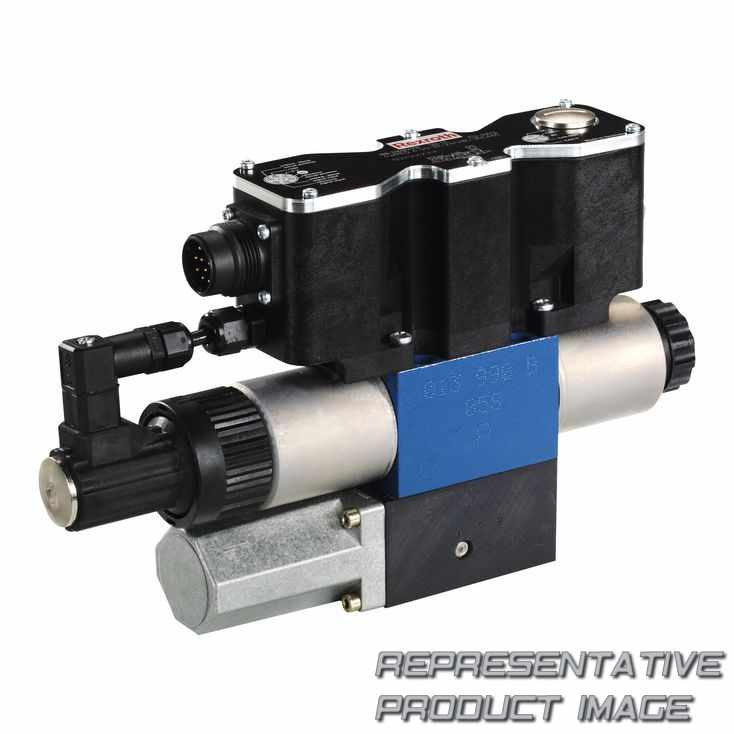

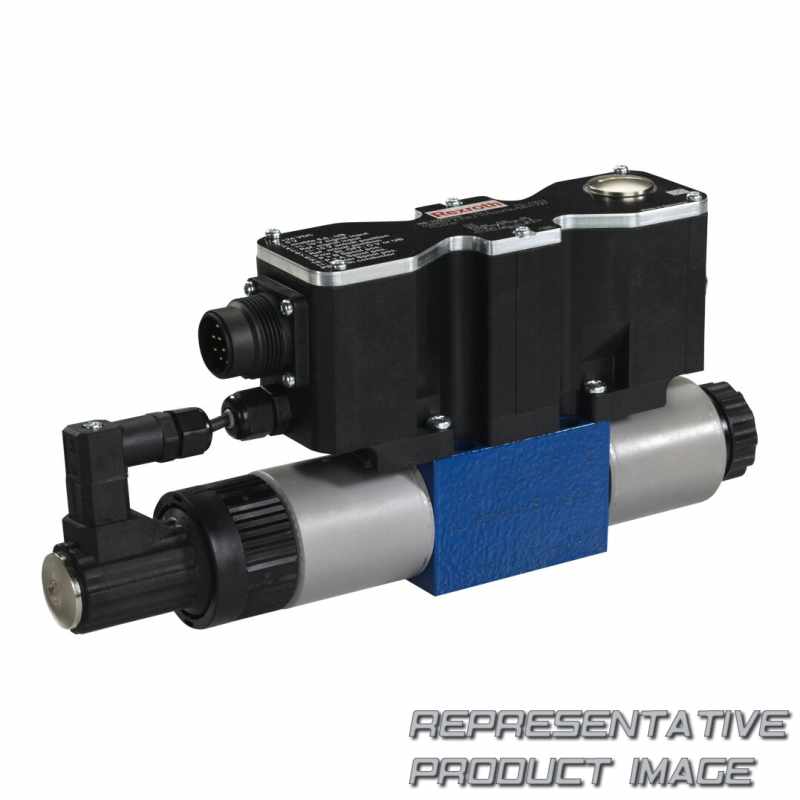

REXROTH R900246617 proportional directional valve
4WREEM10E75-2X/G24K34/B6V
£3,161.90
£3,851.20
-17%
Limited stock
only available on quotation
Specifications
- Size 6, 10
- Component series 2X
- Maximum operating pressure 315 bar
- Maximum flow 180 l/min
| Ports (4) | 4 main ports |
|---|---|
| Series (WRE) | Proportional directional valve direct operated, with electrical position feedback |
| Type (E) | With integrated electronics (OBE) |
| Control spool position (M) | Monitoring of control spool position |
| Size (10) | 10 |
| Symbols (E) | E |
| Rated flow (75) | 75 l/min |
| Step function | Without step function |
|---|---|
| Component Series (2X) | Component series 20 … 29 (20 … 29: unchanged installation and connection dimensions) |
| Supply coltage (G24) | Direct voltage 24 V |
| Electrical connection (K34) | Without mating connector with connector according to DIN 43 651 |
| Eletronics interface (B6) | Command value ±10 VDC |
| Seal Material (V) | FKM seal |
