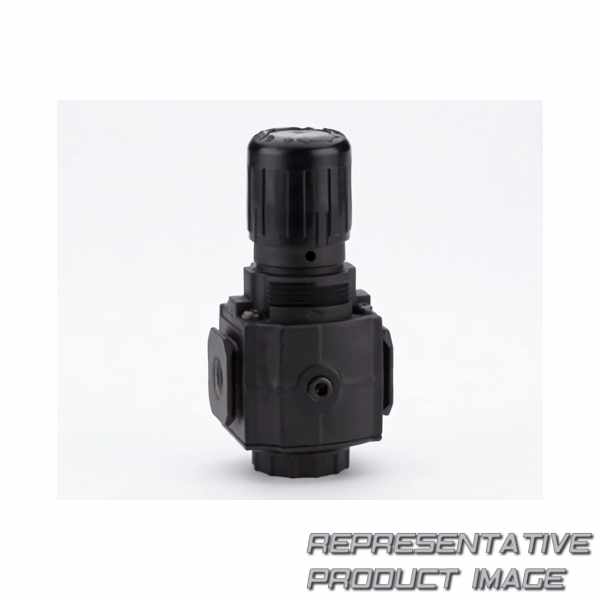

NORGREN R73G-3GK-RMN excelon general purpose pressure regulator

Name: R73G-3GK-RMN NORGREN
Brand: NORGREN
SKU: 779083-en-gbp
Price: 297.94 GBP
Availability: InStock

£297.94

4 pcs. with 1 to 3 days delivery to United States

Specifications

max. pressure	10 bar
Width	68mm

Weight	480g

adjusting knob		acetal resin
body		aluminium
data performance b10 value number of cycles		5000000
elastomers		nitrile rubber
flow flow dm3sec		60 dm3/sec
gauge		no gauge
maximum inlet pressure imperial pressure psi		145 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-30 ... 176 °f
outlet pressure adjustment imperial pressure psig min to max range		4 ... 145 psi
height length millimetre		62 mm
weight weight kilogram		0.48 kg
partially replaced part		r84g-3gk-rmg
product style		modular
relievingnonrelieving		relieving
retrieve price		true

Adjustment		knob
bonnet		aluminium
data performance shelf life		10 years
eu country of origin		mexico
flow flow dm3secbar		60 dm3/(s.bar) dm3/sec
gauge port		rc1/8
maximum inlet pressure pressure bar		10 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 80 °c
outlet pressure adjustment pressure bar min to max range		0.3 ... 10 bar
length length millimetre		135 mm
width length millimetre		68 mm
Port size		g3/8
range		r73g
replaced flag		yes
Series		excelon
