| piston Ø | 63 mm | ||
| functional principle | double-acting | ||
| Guide | ball rail guide | ||
| easy2combine | capable with connection kit | ||
| pressure for determining piston forces | 6,3 bar | ||
| cushioning energy | 25 j | ||
| speed max. | 2 m/s | ||
| working pressure min. | 4 bar | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| weight 0 mm stroke | 11.75 kg |
| Stroke | 406.4 mm | ||
| magnetic piston | with magnetic piston | ||

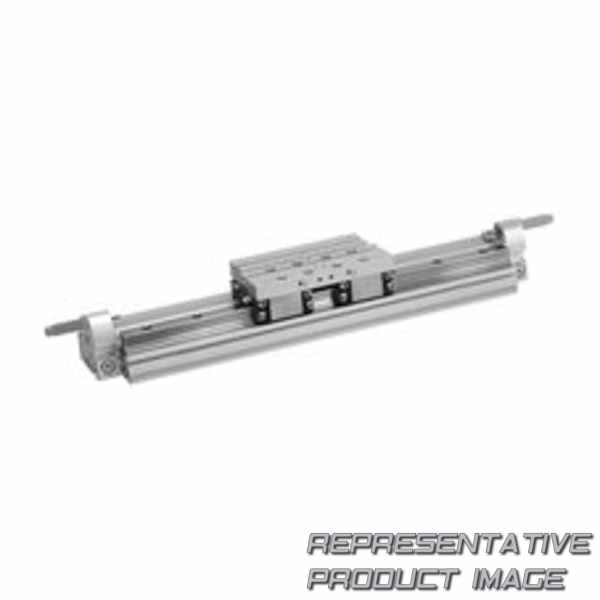

| version rodless cylinder | heavy duty | ||
| piston force | 1964 n | ||
| Cushioning length | 20 mm | ||
| Cushioning | adjustable | ||
| stroke max. | 4300 mm | ||
| working pressure max | 8 bar | ||
| max. ambient temperature | 60 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. particle size | 5 µm | ||
| weight +10 mm stroke | 0.193 kg |
