| seal material | acrylonitrile butadiene rubber | ||
| Weight | 0.09 kg | ||
| nominal flow qn 1 to 2 | 250 l/min | ||
| compressed air connection input | 1/8 npt | ||
| max. particle size | 5 µm | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 80 °c | ||
| max. ambient temperature | 80 °c | ||
| plate connection | pipe connection | ||
| actuating element | panel installation | ||
| working pressure min. | 0 bar | ||

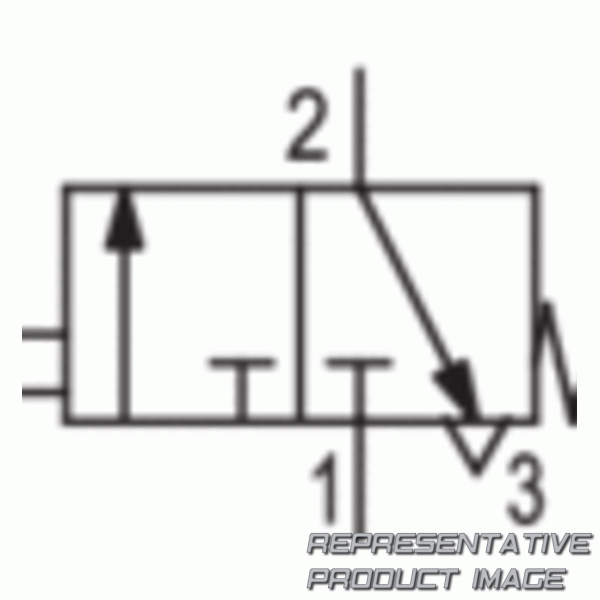

| switching principle | 3/2 |
| Housing Material | aluminum | ||
| nominal flow qn 2 to 3 | 150 l/min | ||
| compressed air connection, exhaust | 1/8 npt | ||
| compressed air connection type | internal thread | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | -30 °c | ||
| min. ambient temperature | -30 °c | ||
| Type | poppet valve | ||
| working pressure max | 10 bar | ||
| compressed air connection output | 1/8-27 nptf | ||
| activation | mechanical |
