| min. ambient temperature | -15 °c | ||
| control pressure min. | 2 bar | ||
| blocking principle | single base plate principle | ||
| valve plug connector | without valve plug connector | ||
| pilot valve width | 30 mm cnomo | ||
| pilot | internal | ||
| actuating control | single solenoid | ||
| electrical connection type | plug | ||
| voltage tolerance ac 60 hz | -10% / +10% | ||
| operational voltage ac at 60 hz | 120 v | ||
| working pressure max | 10.3 bar | ||

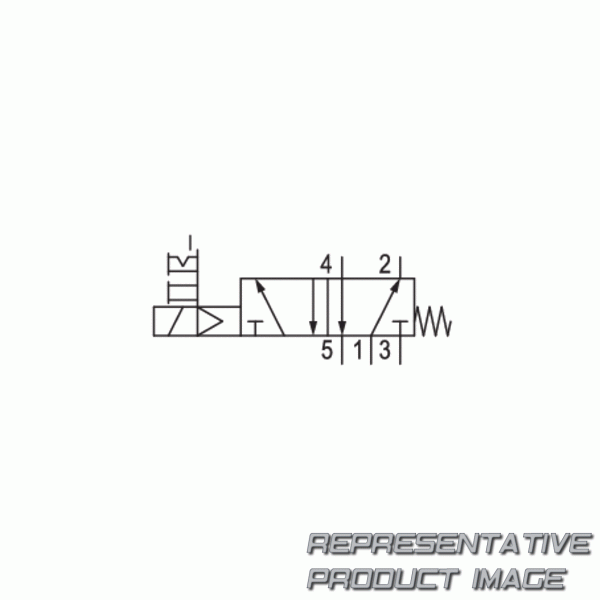

| switching principle | 5/2, with spring return | ||
| activation | electrically |
| control pressure max. | 10.3 bar | ||
| can be assembled into blocks | can be assembled into blocks | ||
| connection type | plate connection | ||
| frame size | iso 1 | ||
| Standards | iso 5599-1 | ||
| Sealing principle | ceramic | ||
| electrical connection size | en 175301-803, form a | ||
| Manual override | with detent, without detent | ||
| voltage tolerance ac 50 hz | -10% / +10% | ||
| operational voltage ac at 50 hz | 110 v | ||
| working pressure min. | 2 bar | ||
| nominal flow qn | 1100 l/min |
