| activation | electrically | ||

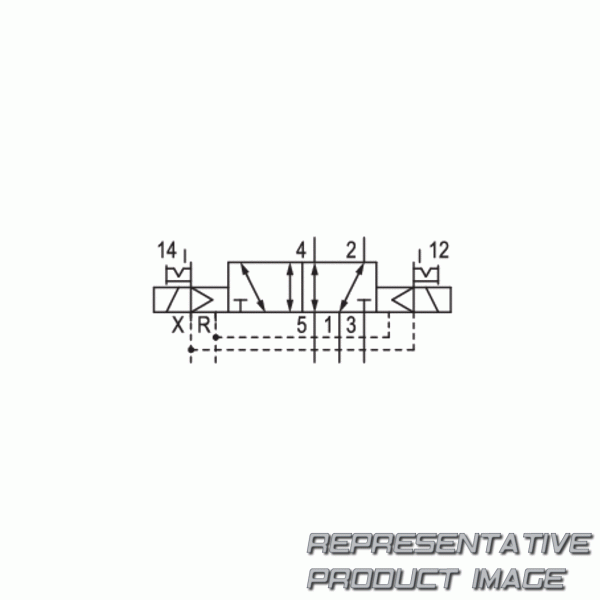

| switching principle | 5/2 | ||
| working pressure max | 10 bar | ||
| voltage tolerance dc | -10% / +10% | ||
| actuating control | double solenoid | ||
| pilot | external | ||
| connection type | plate connection | ||
| control pressure min. | 3 bar | ||
| min. ambient temperature | -10 °c | ||
| min. medium temperature | -10 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| pilot control exhaust | with directional pilot air exhaust |
| nominal flow qn | 300 l/min | ||
| working pressure min. | -0.9 bar | ||
| dc operating voltage | 24 v | ||
| Manual override | with detent | ||
| Sealing principle | soft seal | ||
| valve type | spool valve, positive overlapping | ||
| blocking principle | base plate principle, multiple | ||
| control pressure max. | 8 bar | ||
| max. ambient temperature | 60 °c | ||
| max. medium temperature | 60 °c | ||
| max. particle size | 40 µm | ||
| oil content of compressed air max. | 5 mg/m³ |
