| Medium | compressed air | ||
| min. medium temperature | -10 °c | ||
| min. ambient temperature | -10 °c | ||
| control pressure min. | 2.5 bar | ||
| valve type | spool valve, negative overlapping | ||
| pilot | internal | ||
| actuating control | double solenoid | ||
| electrical connection type | plug | ||
| voltage tolerance ac 50 hz | -10% / +10% | ||
| working pressure max | 10 bar | ||
| compressed air connection output | 1/8-27 nptf | ||

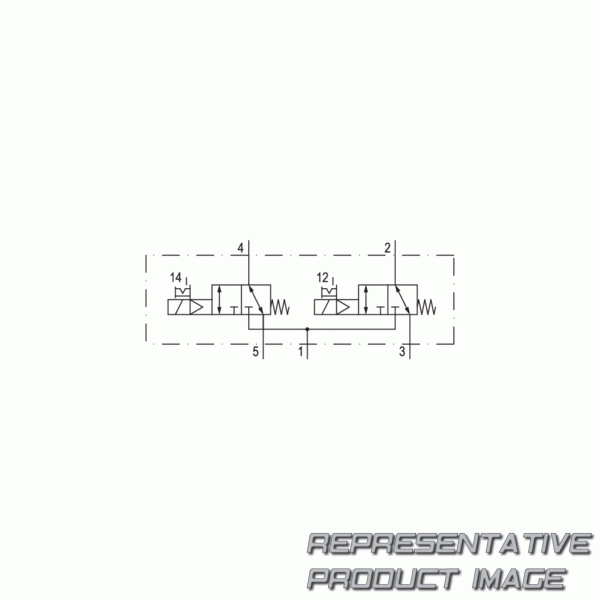

| switching principle | 2x3/2 | ||
| activation | electrically |
| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| control pressure max. | 10 bar | ||
| return | with spring return | ||
| pilot valve width | 15 mm | ||
| Sealing principle | soft seal | ||
| electrical connection size | iso 15217, form c | ||
| Manual override | with detent | ||
| operational voltage ac at 50 hz | 110 v | ||
| working pressure min. | 3 bar | ||
| Version | no, nc | ||
| nominal flow qn | 600 l/min |
