| bellows | double | ||
| functional principle | single-acting, retracted without pressure | ||
| cover diameter | 78 mm | ||
| permissible angle of tilt max. | 25 ° | ||
| min. radial installation space | 95 mm | ||
| force max. | 2200 n | ||
| working pressure max | 8 bar | ||
| max. ambient temperature | 90 °c | ||
| reduced service life at a temperature greater than | 70 °c | ||
| Weight | 0.5 kg | ||
| material front cover | aluminum |

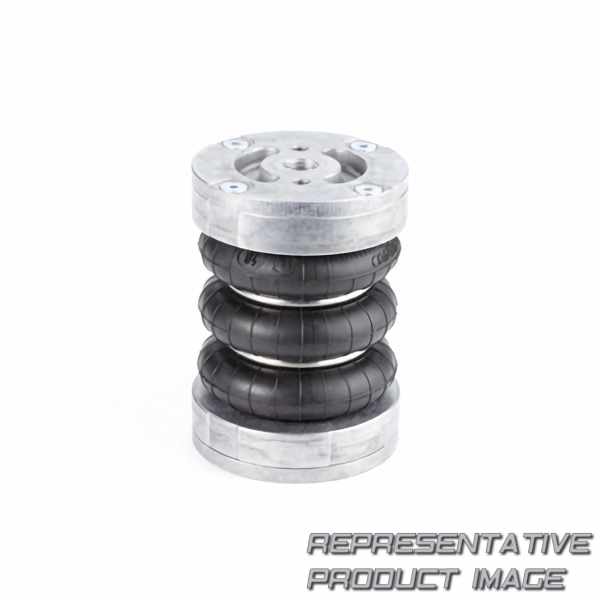

| Type | bellow actuator with mounting ring and cover | ||
| compressed air connection | g 1/4 | ||
| feature | 2 3/4x2 | ||
| max. effective stroke | 39 mm | ||
| force min. | 800 n | ||
| working pressure min. | 0 bar | ||
| min. ambient temperature | -30 °c | ||
| Medium | compressed air | ||
| pressure for determining forces | 6 bar | ||
| material bellow | chloroprene rubber |
