| Housing Material | polyamide fiber-glass reinforced | ||
| generic immunity standard in accordance with norm | en 61000-6-2 | ||
| Diagnosis | undervoltage | ||
| total current of sensors max. | 4 a | ||
| total output for valves | 4 a | ||
| operating voltage, actuators | 24 v dc | ||
| operational voltage electronics | 24 v dc | ||
| min. ambient temperature | -10 °c | ||
| power plug in number of pole | 4-pin | ||
| power plug in type | plug | ||

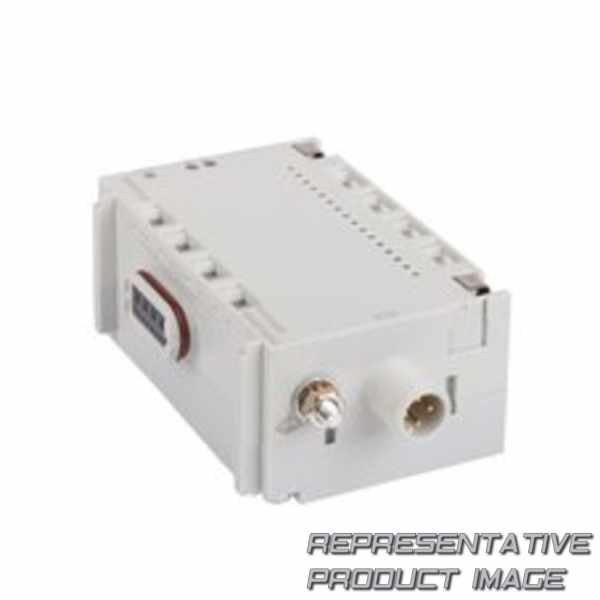

| Version | power module |
| Weight | 0.15 kg | ||
| generic emission standard in accordance with norm | en 61000-6-4 | ||
| logic/actuator voltage | galvanically isolated | ||
| Protection class | ip65 | ||
| actuator voltage tolerance | -10% / +10% | ||
| electronics voltage tolerance | -25% / +25% | ||
| max. ambient temperature | 60 °c | ||
| power supply direction ua | left | ||
| power plug in size | m12x1 | ||
| e/a capable | connection with i/o |
