| seal material | fluorocaoutchouc | ||
| certificates | ce declaration of conformity | ||
| max. ambient temperature | 100 °c | ||
| working pressure max | 20 bar | ||
| nominal flow qn 1 to 2 | 5966 l/min | ||

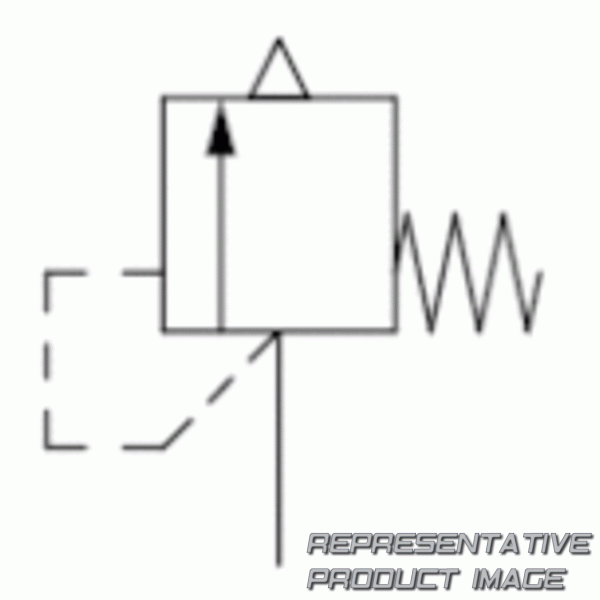

| Type | poppet valve | ||
| mounting | thread-in | ||
| compressed air connection 1 | g 3/8 |
| Housing Material | brass | ||
| Medium | compressed air | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 0 bar | ||
| opening pressure of valve | 6.8 bar | ||
| compressed air connection type 2 | uncollected | ||
| compressed air connection type 1 | external thread |
