| activation | electrically | ||
| Version | nc | ||
| working pressure min. | 2.5 bar | ||
| dc operating voltage | 24 v | ||
| connection type | pipe connection | ||
| can be assembled into blocks | can be assembled into blocks | ||
| Type | poppet valve | ||
| max. ambient temperature | 50 °c | ||
| max. particle size | 25 µm | ||
| Duty cycle | 100 % | ||
| Reverse polarity protection | protected against polarity reversal | ||
| electrical connection 2, thread size | iso 15217, form c | ||
| Housing Material | polyamide |
| nominal flow qn | 2000 l/min | ||
| compressed air connection | g 3/8 | ||
| working pressure max | 10 bar | ||
| Sealing principle | soft seal | ||

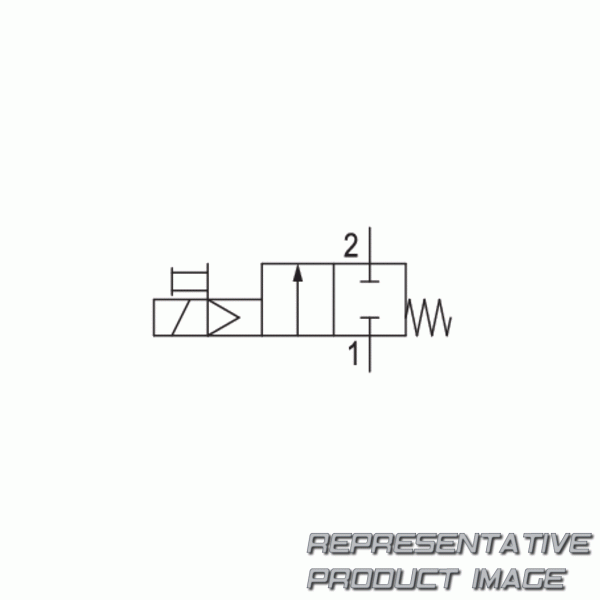

| parts | 2/2-directional valve | ||
| basic valve with electrical connector | basic valve with pilot valve | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| power consumption dc | 2 w | ||
| protection class with connection | ip65 | ||
| electrical connection type 2 | plug | ||
| Weight | 0.291 kg |
