| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 60 °c | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 8 bar | ||
| angle of rotation max. | 180 ° | ||
| Cushioning | elastic | ||
| theoretical torque | 0.17 nm | ||
| max. permissible radial bearing load | 170 n | ||
| air consumption per rotation | 2.26 cm³ | ||
| theoretical torque at | 6 bar | ||
| easy2combine | capable | ||
| magnetic piston | with magnetic piston | ||
| Diameter | 6 mm |
| Medium | compressed air | ||
| min. medium temperature | 5 °c | ||
| min. ambient temperature | 5 °c | ||
| working pressure min. | 2 bar | ||
| angle of rotation min. | 0 ° | ||
| repetitive precision | 0.2 ° | ||
| max. permissible mass moment of inertia | 0.08 kg cm² | ||
| max. permissible axial bearing load | 170 n | ||
| min. swivel times | 0.12 s | ||
| frame size | rcm-06 | ||

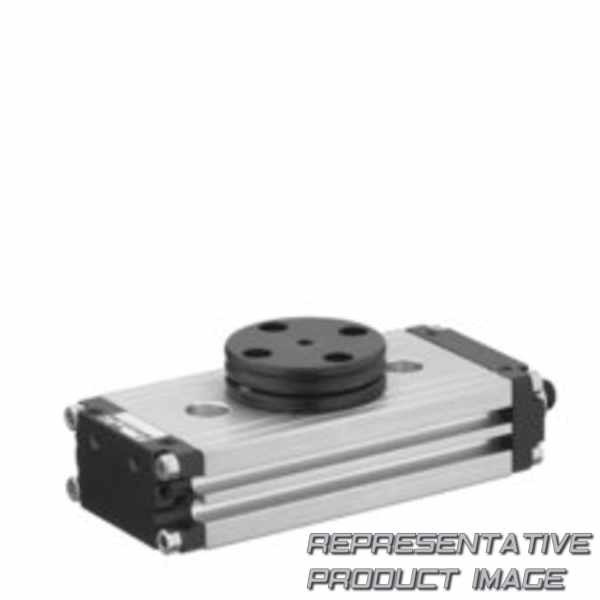

| rotary compact module version | double piston with rack | ||
| compressed air connection | m3 |
