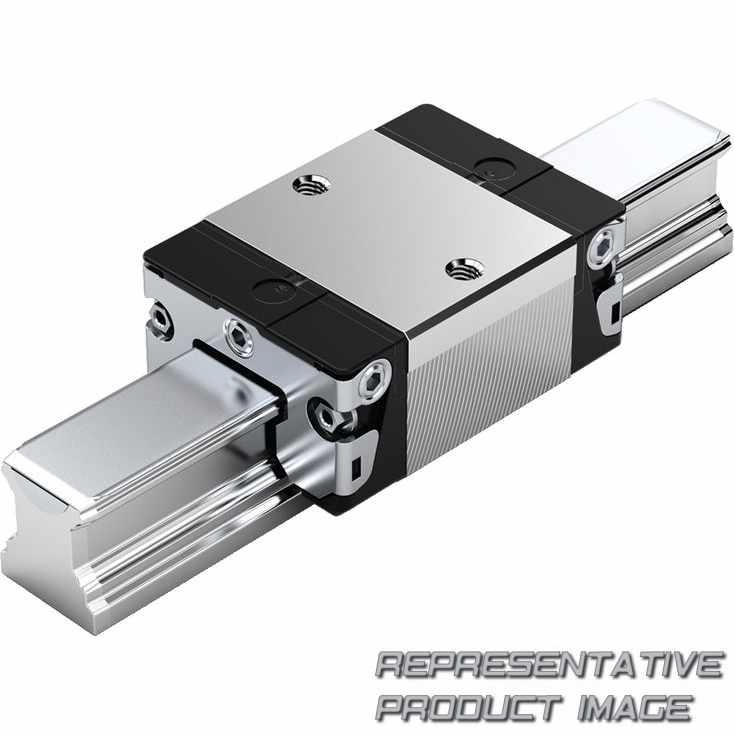

R200231314 Bosch Rexroth

REXROTH R200231314 ball runner block nrfg

Name: R200231314 REXROTH
Brand: REXROTH
SKU: 296990-en-gbp
Price: 312.83 GBP
Availability: InStock

KWD-035-FLS-C1-H-0

£312.83

9 pcs. with 1 to 3 days delivery to United States

Specifications

All metal parts are made from corrosion-resistant steel
All plastic parts are made from certified materials
Excellent dynamic characteristics
The same high load ratings in all four main directions of loading
Can be used on all SNS Ball Guide Rails

Size	35
Preload class	C1
Accuracy class	H

Seal	SS
Lubrication	Not pre-lubricated, no preservative oil
Weight	2.25Kg

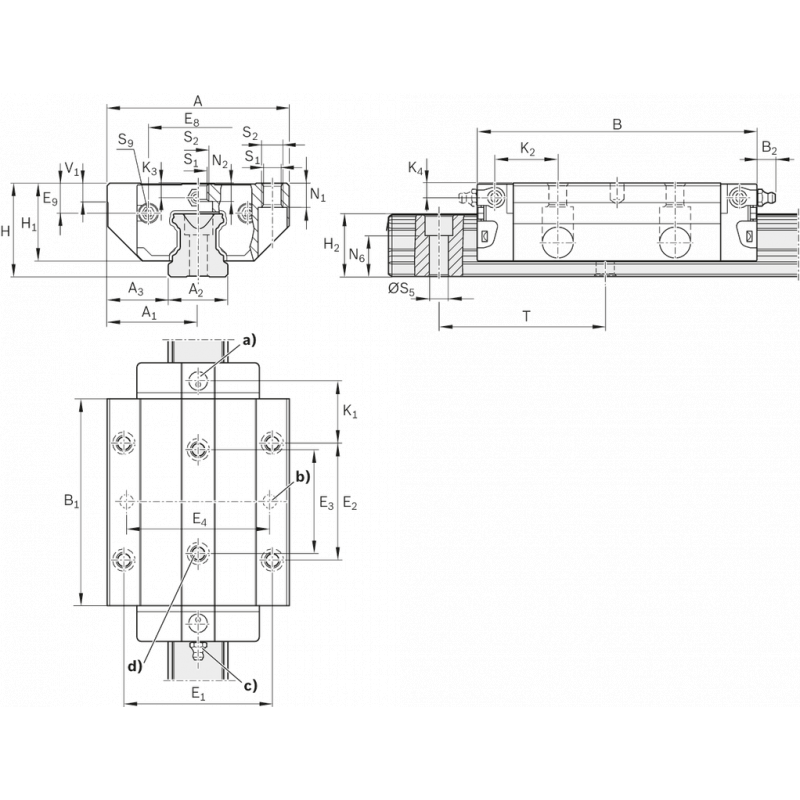

Dimensions
Technical data

^a) For O-ring
Size 15: Ø 4 · 1.0 (mm)
Sizes 20 - 35: Ø 5 · 1.0 (mm)
Open the lube port if required.
^b) Recommended position for pin holes
Pre-drilled holes may be present at this position for manufacturing reasons. These can be drilled open.
^c) Lube nipple, sizes 15 – 20:
Funnel-type lube nipple DIN 3405-A M3x5, B₂ = 1.6 mm
When using different lube nipples, observe the screw-in depth of 5 mm!
Lube nipple, sizes 25 - 35:
Hydraulic-type lube nipple DIN 71412-A M6x8, B₂ = 9.5 mm
When using different lube nipples, observe the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection possible on all sides.
^d) Sealing plugs maybe present at this position for manufacturing reasons. Remove before mounting.

A	100	mm
A₂	34	mm
B	139 mm
E₁	82	mm
E₃	52	mm
E₉	17.35	mm
H₁	40.40	mm
Dimension H₂ without cover strip	31.85	mm
K₂	30.25	mm
K₄	6.90	mm
N₂	10.15	mm
S₁	8.50	mm
ØS₅	9	mm
T	80	mm

A₁	50	mm
A₃	33	mm
B₁	105.50	mm
E₂	62	mm
E₈	58	mm
H	48	mm
Dimension H₂ with cover strip	32.15	mm
K₁	28.75	mm
K₃	6.90	mm
N₁	12	mm
N₆	20.5 mm ±0.5
S₂	M10
S₉	M3x5
V₁	8	mm
