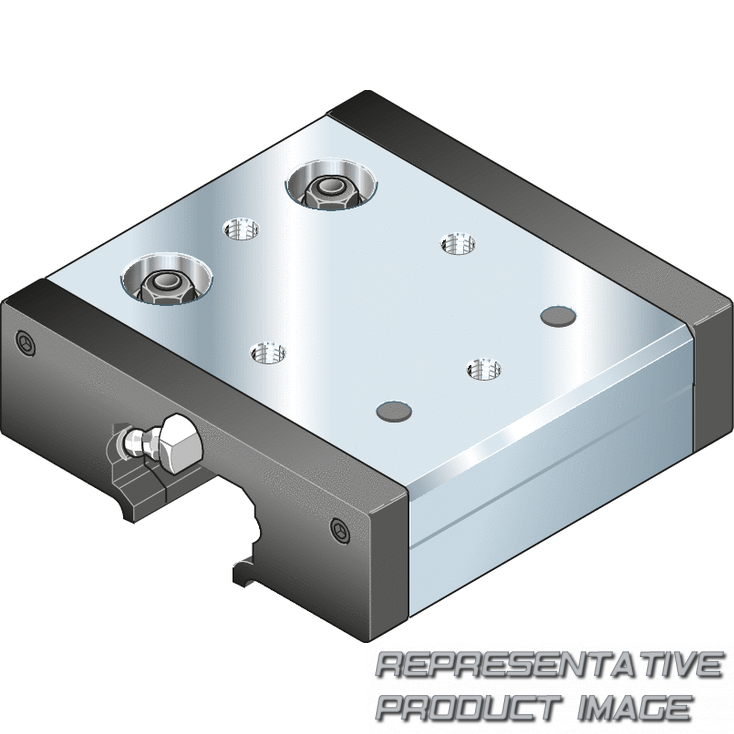

1)
Eccentric setting
Lube nipples
Sizes 20 – 32:
- Funnel-type lube nipple
- Form B - thread M3
Sizes 52 – 52-sh:
- Hydraulic-type lube nipple
- BM 6 DIN 71412
Connection possible on two sides.
| SW2 | 3 | mm | |
| A | 86 | mm | |
| B1 | 92 | mm | |
| E1 | 59 | mm | |
| E3 | 54 | mm | |
| E5 | M8 | ||
| H1 | 13 | mm | |
| H3 | 29.50 | mm |
| SW3 | 4 | mm | |
| B | 112 | ||
| B2 | 7 | mm | |
| E2 | 70 | mm | |
| E4 | 60 | mm | |
| H | 35.50 | mm | |
| H2 | 20.50 | mm | |
| SW1 | 10 | mm |
| Fy max (Observe the permissible lateral force of the guide rail (see notes for mounting).) | 1,000 | N | |
| Fz max | 850 | N | |
| Mx max | 11 | Nm | |
| My max | 26 | Nm | |
| Mz max | 30 | Nm | |
| vmax (For average load.) | 10 | m/s | |
| Temperature stability | -20 °C ... +80 °C |
| F0y max (Observe the permissible lateral force of the guide rail (see notes for mounting).) | 1,000 | N | |
| F0z max | 1,400 | N | |
| M0x max | 18 | Nm | |
| M0y max | 42 | Nm | |
| M0z max | 30 | Nm | |
| amax | 50 | m/s² | |
| Weight | 0.56 | kg |
