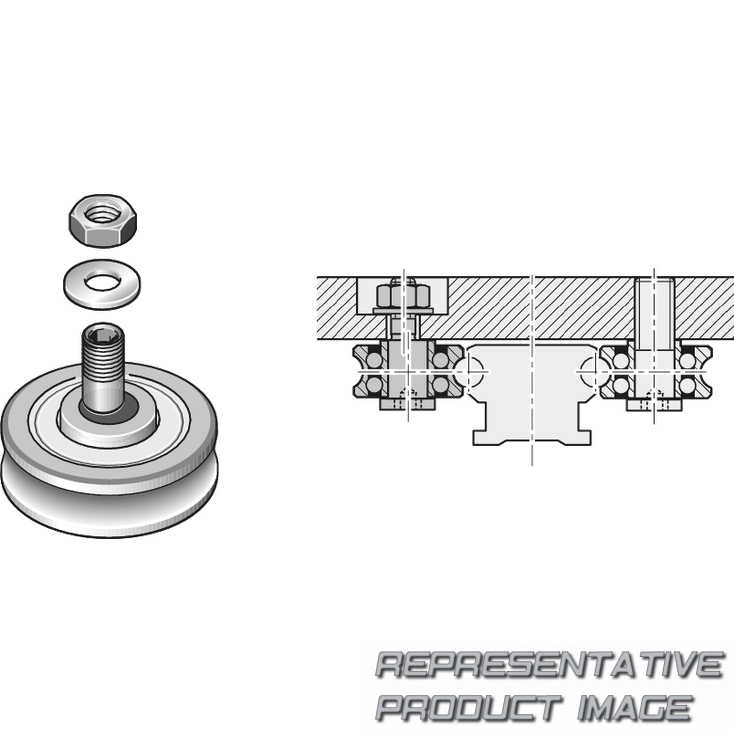

1)
Sizes 20, 25, 32
2)
Sizes 52, 52-h, 52-sh
| D1 g6 | 14 | mm | |
| D3 | 34 | mm | |
| D5 | M6 | ||
| D7 | 18 | mm | |
| Tolerance for E3 | ± 0.2 | ||
| H1 | 11 | mm | |
| H3 | 7 | mm | |
| H5 | 29 | mm | |
| H7 | 1.60 | mm | |
| S1 | 6 | mm | |
| SW2 | 3 | mm |
| D2 | 24 | mm | |
| D4 g6 | 6 | mm | |
| D6 | 11.80 | mm | |
| E3 (Recommended hole spacing when using the following cam roller guide rails: standard R1921, with slot R1922, flat R1924 ) | 54 | mm | |
| e | 0.90 | ||
| H2 | 12.50 | mm | |
| H4 | 25.50 | mm | |
| H6 | 5.20 | mm | |
| H8 | 5.50 | mm | |
| SW1 | 10 | mm | |
| SW3 | 4 | mm |
| Fy max | 550 | N |
| Fz max | 180 | N |
