R186132360 Bosch Rexroth

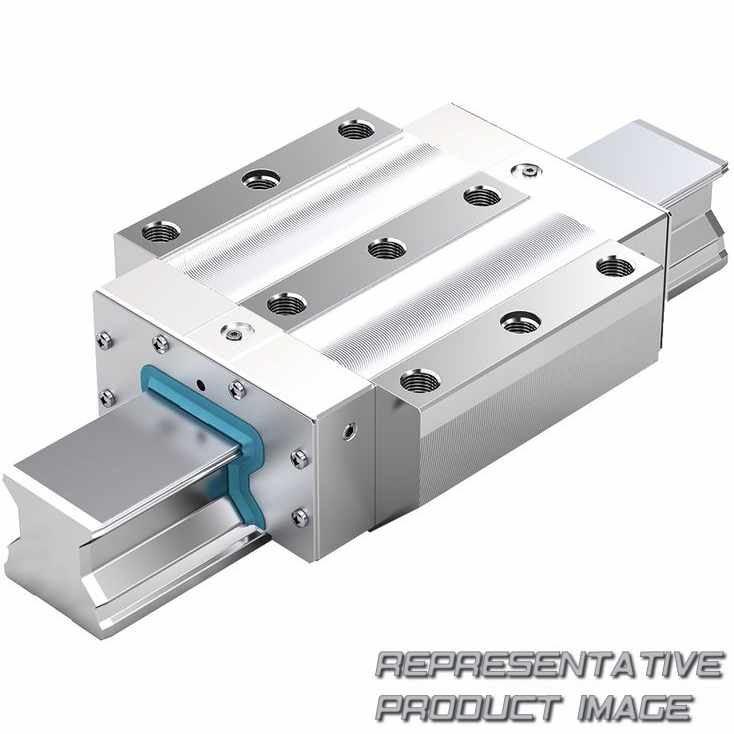

REXROTH R186132360 roller runner block resist cr

Name: R186132360 REXROTH
Brand: REXROTH
SKU: 113660-en-gbp
Price: 15211.86 GBP
Availability: SoldOut

RWA-125-FNS-C2-H-2

£15,211.86

Limited stock only available on quotation

Specifications

Heavy-duty roller runner block for heavy machine construction with extremely high load capacity
Top rigidity in all load directions
Improved rigidity under lift-off and side loading conditions due to three additional mounting screw holes at the center of the roller runner block
High torque capacity
Limitless interchangeability and any number of combination options thanks to uniform roller guide rails in different versions across all roller runner block variants

Roller runner block Resist CR with corrosion-resistant coating, matt silver finish, hard chrome plated

Series (R1861)	Flange, normal, standard height R1861...6
Size (3)	125 size
Preload class (2)	C2 Average preload

Accuracy class (3)	H Hight Accuracy Level
Seals (60)	SS single lipped seal, stripping

Dimensions
Technical data

^a) For O-ring Ø 15 • 2.5 (mm)
For lube port from above:
- size 100: Open lube port (see section entitled "Lubrication").
- size 125: Remove screw plug.
^b) Lube nipple, thread M8x1:
Connection possible on all sides.
All lube ports of size 125 in metal.
^c) Side lube ports on two sides, in end caps only with size 100.

B₄	130	mm
A₁	160	mm
A₃	97.50	mm
B₁	255	mm
B₃	386.50	mm
E₈	80	mm
E_8.3	205	mm
E_9.2	40	mm
H	160	mm
Dimension H₂ with cover strip	115.30	mm
K₂	50	mm
N₂	29	mm
N₆	74.5 mm +0.5
ØS₁	25	mm
ØS₅	33	mm
V₁	25	mm

A	320	mm
A₂	125	mm
B	371
B₂	377	mm
E₂	205	mm
E_8.2	205	mm
E₉	12	mm
E_9.3	92	mm
H₁	135.50	mm
K₁	50	mm
N₁	45	mm
N₅	29	mm
N₇	92	mm
S₂	M27
T (Dimension T = Division of the Roller Guide Rail)	120	mm
E₁	270	mm

a_max (Prerequisite: There must be preload, even during operation under load.)	150	m/s²
m	62.10	kg
m (Without friction of seal)	0,0004 ... 0,001
Size	125

v_max	2	m/s
F_R (Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. The friction is approx. 50% higher immediately after lubrication. )	600	N
Operating conditions	Operating conditions
Permissible ambient temperature (min ... max) (Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. )	-10 °C ... +80 °C
