R18222237X Bosch Rexroth

REXROTH R18222237X roller runner block resist cr

Name: R18222237X REXROTH
Brand: REXROTH
SKU: 113765-en-gbp
Price: 523.33 GBP
Availability: SoldOut

RWD-025-SNS-C2-H-2

£523.33

Limited stock only available on quotation

Find your match! Click to explore guide rails that pair with this runner block

Specifications

High torque capacity
The same high load ratings in all four main directions of loading
Maximum rigidity under load from all directions through two additional mounting screw holes at the center of the roller runner block
Corrosion-resistant coating Resist CR, matte silver hard chrome plated
All guide rail versions can be combined at will with all roller runner block variants

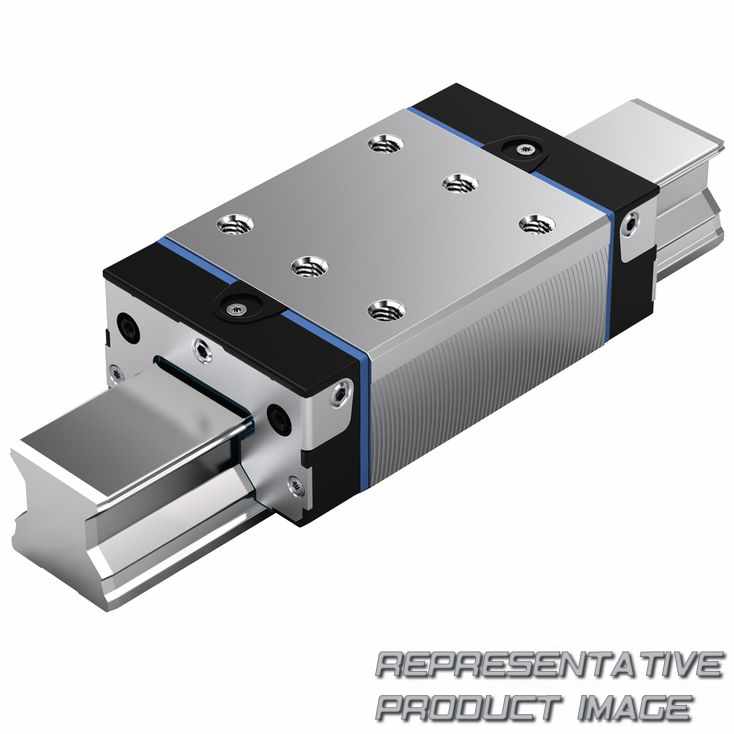

Roller runner block Resist CR with corrosion-resistant coating, matt silver finish, hard chrome plated

Series (R1822)	Slimline, normal, standard height R1822...7
Size (2)	25 size
Preload class (2)	C2 Average preload

Accuracy class (3)	H Hight Accuracy Level
Seals (7X)	DS double lipped seal

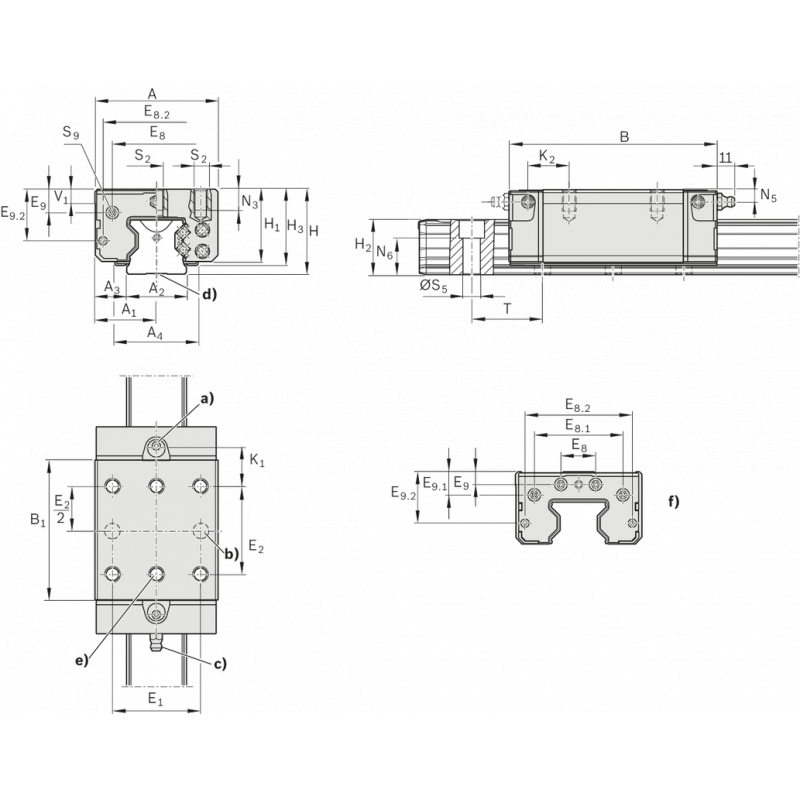

Dimensions
Technical data

^a) For O-ring
Size 25: Ø 5 • 1.5 (mm)
Sizes 35 to 65: Ø 7 • 1.5 (mm)
^b) Recommended position for pin holes
(E4 dimensions, see section entitled “Instruction for mounting", segment "Pinned fitting").
^c) Lube nipple, thread M6 - 8 deep:
Connection is possible on all sides (at front and top for size 25). Dimensions differ among different connectors See "Accessories" for more information about lube ports.
^d) For Roller Guide Rails of accuracy class H, this base area may be without a base slot for manufacturing reasons.
^e) Sealing plugs may be present at this position for manufacturing reasons.
Remove these prior to mounting.
^f) Size 65

A	48	mm
A₂	23	mm
B	97
E₁	35	mm
E₈	33.40	mm
E_8.2	40.20	mm
E_9.1	-
H	36	mm
Dimension H₂ with cover strip	23.60	mm
K₁	19.05	mm
N₃	8	mm
N₆	14.3 mm ±0.5
ØS₅	7	mm
T (Dimension T = Division of the Roller Guide Rail)	30	mm

A₁	24	mm
A₃	12	mm
B₁	63.50	mm
E₂	35	mm
E_8.1	-
E₉	8.30	mm
E_9.2	21.40	mm
H₁	30	mm
Dimension H₂ without cover strip	23.40	mm
K₂	-
N₅	5.50	mm
S₂	M6
S₉ (Thread for adjoining parts)	M3 ‒ 6.5mm deep
V₁	7.50	mm

a_max (Prerequisite: There must be preload, even during operation under load.)	150	m/s²
m	0.54	kg
m (Without friction of seal)	0,0004 ... 0,001
Size (In progress)	25

v_max	4	m/s
F_R (Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. )	30	N
Operating conditions	Operating conditions
Permissible ambient temperature (min ... max) (Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. )	-10 °C ... +80 °C
