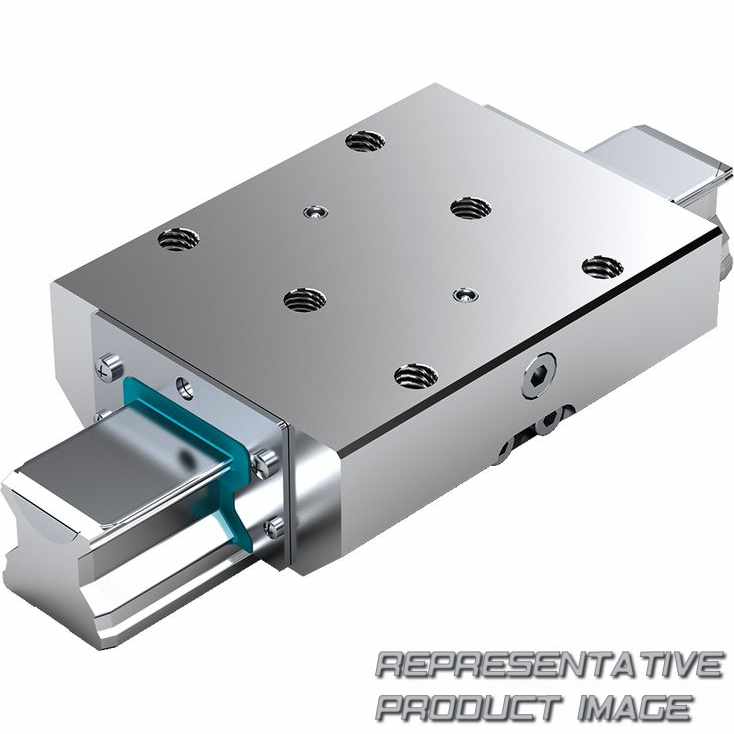

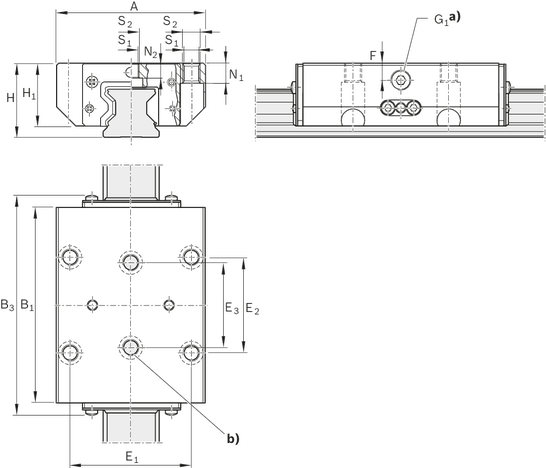

a)
Hydraulic connection*) G1 on two sides
b)
In addition, both middle mounting holes must be used!
*) Only one connection needed.
All connections sealed upon delivery.
| N2 (For mounting from below with DIN 7984) | 7.30 | mm | |
| H1 | 30 | mm | |
| G1 | 1/8" | ||
| E3 | 40 | mm | |
| E1 | 57 | mm | |
| B1 | 92 | mm | |
| S2 | M8 |
| N1 (For mounting from below with ISO 4762) | 9 | mm | |
| H | 36 | mm | |
| F | 9.50 | mm | |
| E2 | 45 | mm | |
| B3 | 105 | mm | |
| A | 70 | mm | |
| S1 | 6.80 | mm |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | ||
| Operating conditions | Operating conditions | ||
| Max. hydraulic operating pressure | 100 | bar | |
| Holding force (The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see “Technical data and calculations.” ,At 100 bar) | 2,200 | N |
| Size | 25 | ||
| Mass | 1.22 | kg | |
| Displacement (Per clamping) | 0.60 | cm³ |
